Stainless steel hook for barrell tiles GC A2

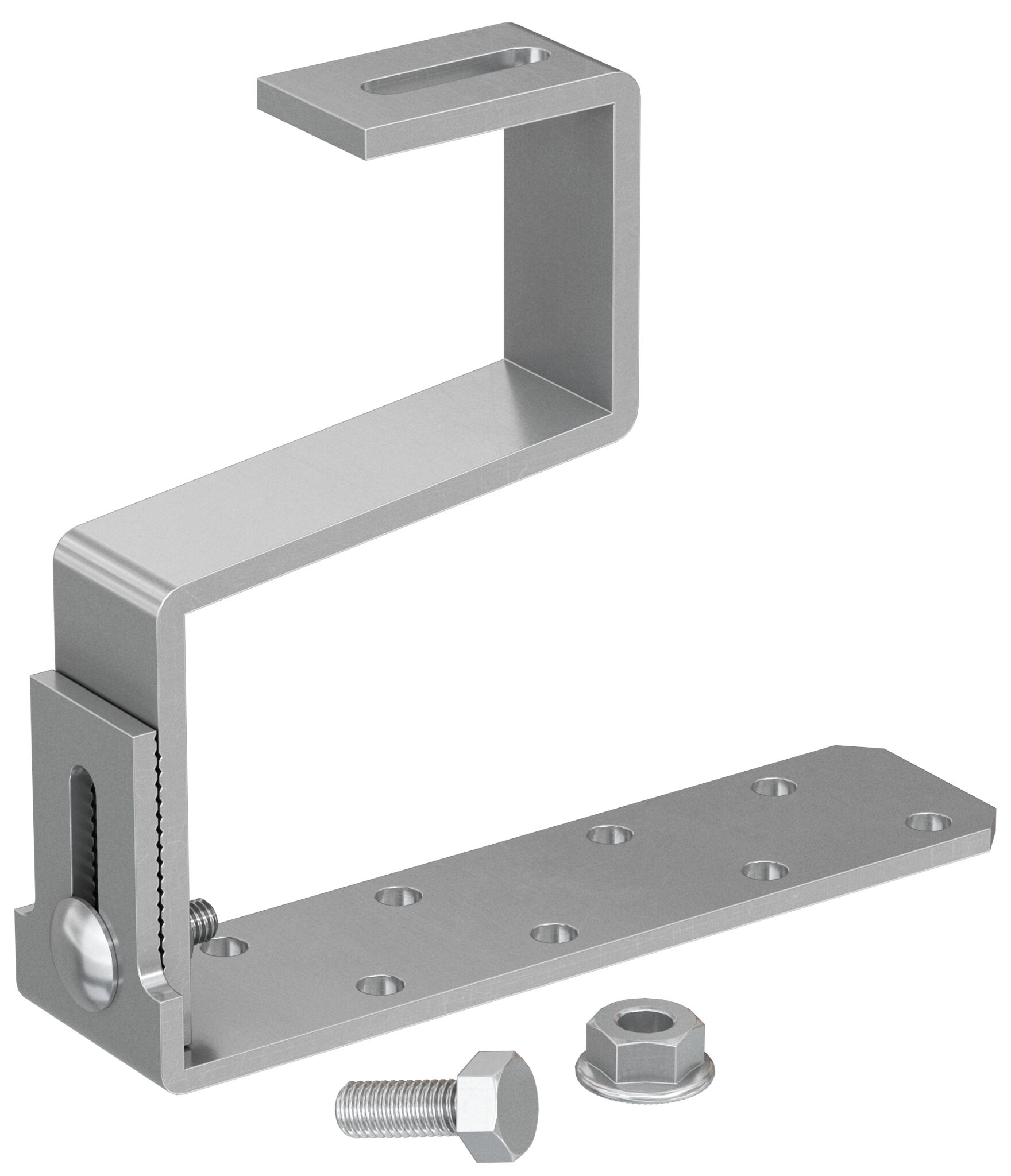

  • Product Picture: "fischer roof hook GC A2 stainless steel A2"
  • Product Picture: "fischer roof hook GC A2 stainless steel A2"
  • Application Picture
  • Application Picture
    • Application Picture
    • Product Picture
    • Product Picture
    • Application Picture
      Art.-No. 571137

      fischer roof hook GC A2 stainless steel A2

      Product variants
      Download of image data
      Top Features
      • Total height adjustable from 176 to 205 mm
      • Upper fold height: 73 mm
      • Height below the lower fold adjustable from 92 to 121 mm
      • Contains screws for connection to the rail
      • Made of AISI 304 stainless steel

      The advantages / Product description

      Stainless steel hook with adjustable height for the installation of photovoltaic systems on barrel tiled roofs.
      Advantages
      • The hook is supplied pre-assembled and the accessories for connecting to the Solar rails are included in the package.
      • The adjustable connection is equipped with anti-slip knurling for secure fixing.
      • The hook can be used with any type of tile thanks to the vertical adjustment.
      • The wide Ø9 mm base plate holes make it easy to connect to the load-bearing support structure.
      GC is the AISI 304 stainless steel hook with adjustable height for building structures for photovoltaic systems on barrel tiled roofs. The system already contains the screws for connection to the rail.
      Properties
      • X5CrNi 18-10 stainless steel hook in accordance with EN 10088-2:2005.
      • Class A2-70 stainless steel bolts in accordance with EN ISO 3506-1/2:2010.

      Application and approval

      Applications
      Suitable for pitched roof systems with:
      • SolarFish H33
      Approvals
      • TUV - R 60154136

      Assembly instruction

      Functionality
      • Determine the centre distance of the hooks according to the snow and wind loads in the installation area.
      • Determine the position of the hooks according to the load-bearing structure and system layout.
      • Lift the tile and fix the hook using the appropriate anchor determined according to the type and layers of the support.
      • Connect the hook to the rail by inserting the supplied screws inside the lower groove of the rail.
      Mounting Strip 1 Picture
      1 / 5
      • 1
        Mounting Strip 1 Picture
      • 2
        Mounting Strip 1 Picture
      • 3
        Mounting Strip 1 Picture
      • 4
        Mounting Strip 1 Picture
      • 5
        Mounting Strip 1 Picture

      Technical data

      Total height 176 - 205 mm
      Installation torque (
      Tinst
      )      		20 Nm
      Width across nut 13 mm
      Contents 10 x Hook GC A2
      10 x Hexagon head screw SKS M8 x 20 A2
      10 x Hexagon nut MU F M8 A2
      Amount 10 pcs.
      GTIN (EAN-Code) 8001132711378

      Documents for download

      • Approvals and Certificates
      • Sales materials
      Certificate
      pdf, TUV - R 60154136
      TUV Certificate
      Valid from 11/01/2021
      to 11/01/2026
