Stainless steel adjustable hook for the installation of PV panels on pitched barrel tile roofs.
Stainless steel hook for barrell tiles GC A2

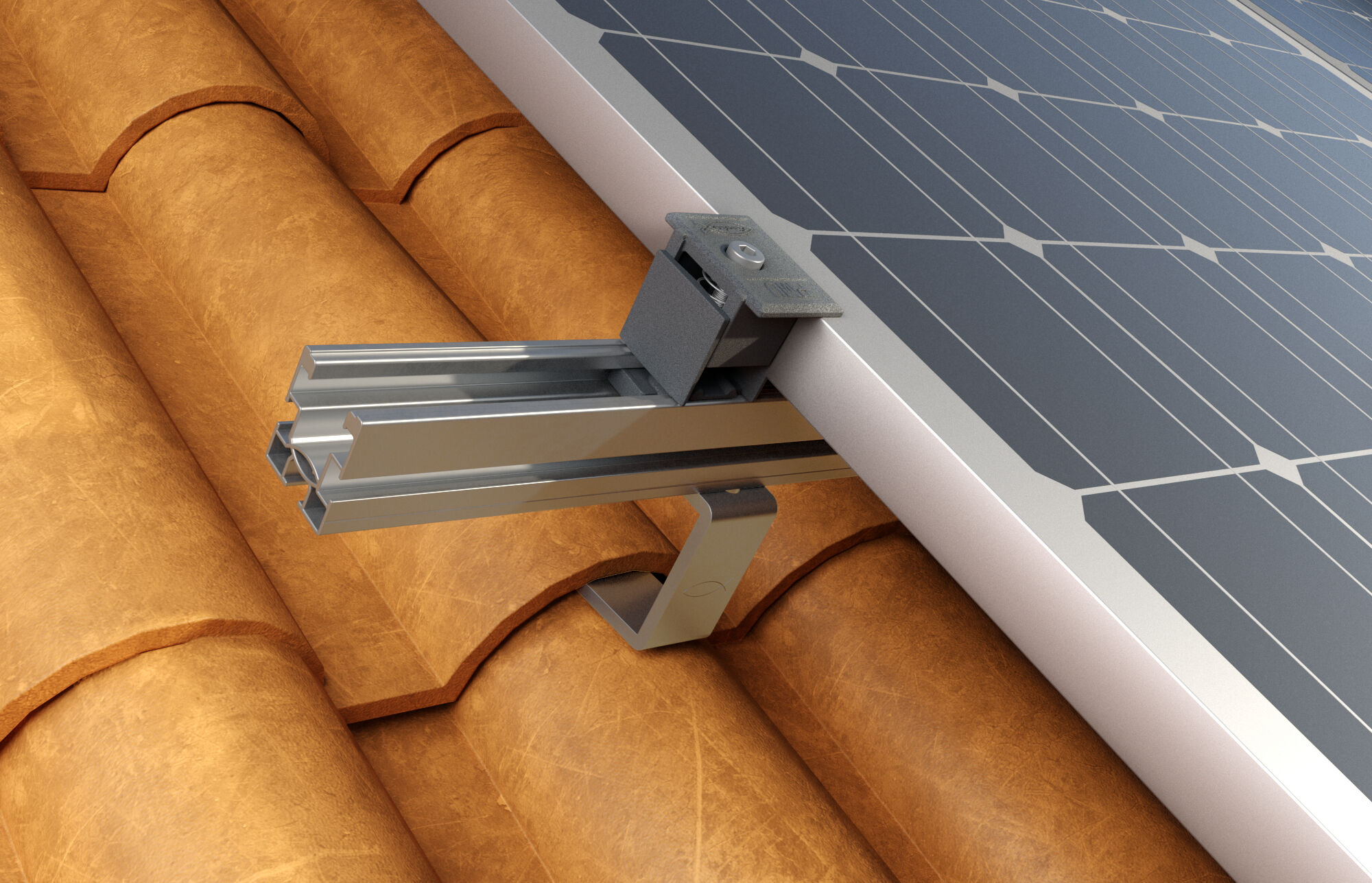

GC is the stainless steel hook with adjustable height for the installation of PV panels on barrel tile roofs. Complete with screws for connection to the rail.
10 x Hook GC A2 10 x Hexagon head screw SKS M8 x 20 A2 10 x Hexagon nut MU F M8 A2
10[pcs.]
8001132711378
Total height
176 - 205 mm
Installation torque (
Tinst
)
20 Nm
Width across nut
13 mm
Contents
10 x Hook GC A2 10 x Hexagon head screw SKS M8 x 20 A2 10 x Hexagon nut MU F M8 A2
Amount
10 pcs.
GTIN (EAN-Code)
8001132711378
Viewed 1 of 1 variant (s)
The advantages / Product description
Advantages
The multiple adjustments allow to adapt the hook to different barrel tiles: the lower vertical adjustment allows to adapt the hook to different thicknesses of tiles; the higher adjustment allows to horizontally align the rail.
The 5 mm reduced thickness easily fits the barrel tiles.
Made of resistant stainless steel.
The hook is pre-assembled and the accessories for connecting to the Solar rails are included in the package.
Properties
X5CrNi 18-10 stainless steel hook in accordance with EN 10088-2:2005.
Class A2-70 stainless steel bolts in accordance with EN ISO 3506-1/2:2010.
Application and approval
Applications

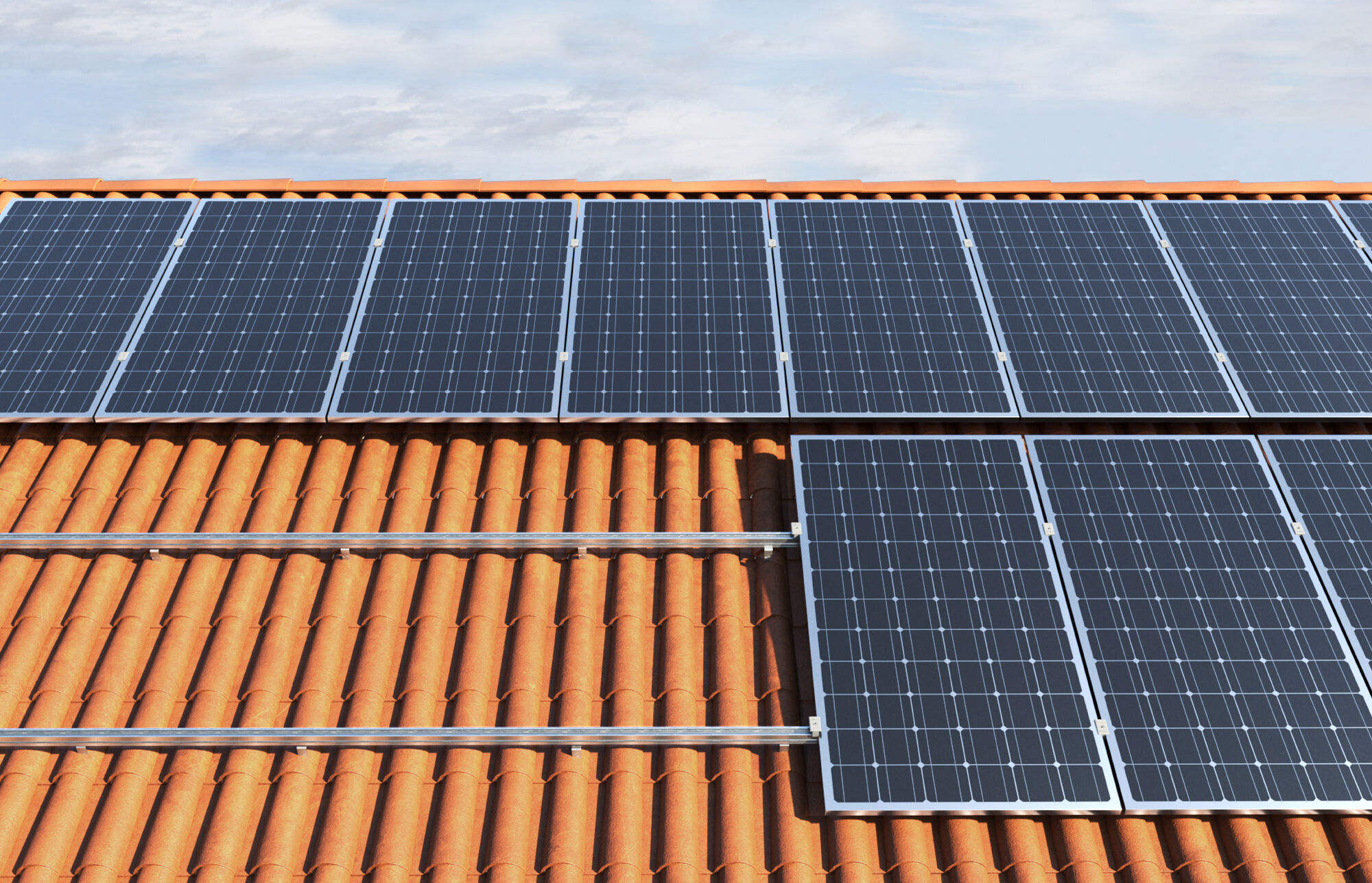

PV panels installation on pitched roofs with barrel tiles.
Approvals
TUV - R 60154136
Assembly instruction
Functionality
Determine the centre distance of the hooks according to the snow and wind loads in the installation area (use SOLARPANEL-FiX software to design the system) and according to the load-bearing structure and system layout.
Lift the barrel tiles and secure the base of the hook using the appropriate anchor determined according to the type of the load-bearing support.
Make the vertical adjustment required by the type of the roof and tighten the screws of the adjustment applying a 20 Nm torque to lock the hook in position.
Use the existing slot in the higher part of the hook to adjust the selected rail position.
Fasten the rail tightening the screw with a 10 Nm torque.
