The cost-efficient fixing for high performance requirements in cracked concrete.

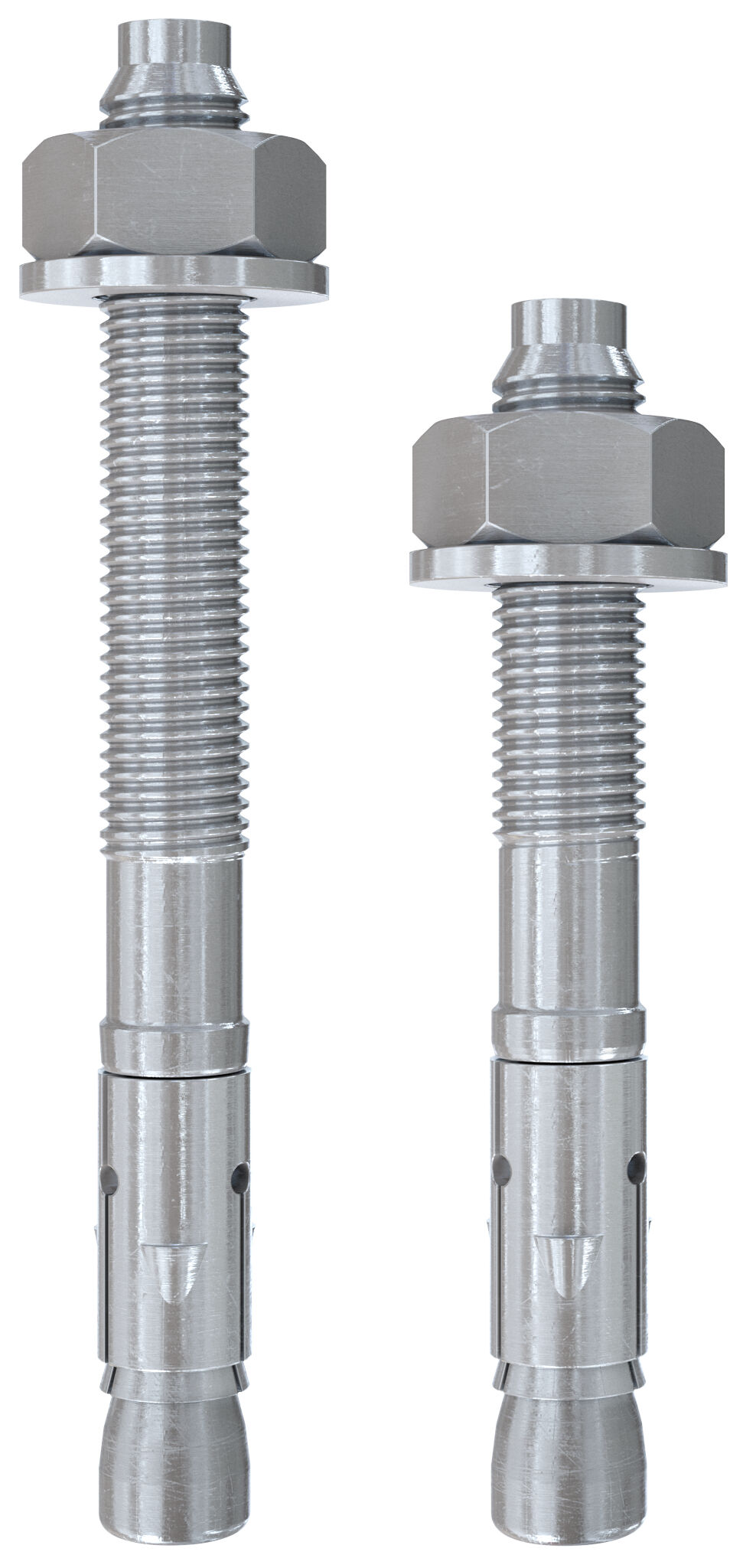

Bolt anchor FAZ II Classic

The fischer bolt anchor FAZ II Classic is the cost-efficient fixing solution for strong load performance in cracked concrete. With the FAZ II Classic, the acting loads are safely transferred into the substrate. Thanks to the two anchorage depths combined with the simple installation, the steel anchor can be used particularly flexibly. The steel anchor is ideal for anchoring façade elements, railings, cable trays and high-bay racking systems, for example.

Product variants

Download of image data

Product variants

Approvals / Test reports

40 Product variant (s)

Drill diameter

Min. drill hole depth for through fixings

Max. usable length hef,stand./hef,min.

Anchor length

Thread

Width across nut

Legend = Permission Available— = Permission not Available

More results

Viewed 18 of 40 variant (s)

Advantages

The ETA approval Option 1 and fire resistance approval R120 in cracked and non-cracked concrete ensure a high quality standard and enable all safety-relevant applications.
The full range M8-M16 in zinc plated and stainless steel allows a wide field of indoor and outdoor applications.
Thanks to the seismic approval (C1 and C2), the anchors can also be used safely in earthquake zones.
The short version is particularly suitable for avoiding reinforcement hits due to the low anchoring depth.
Quick and easy installation is possible with the help of the FA-ST II setting tool.
The two possible anchorage depths offer more flexibility in the application.

Applications

Steel constructions
Façades
Railings
Cable trays
Consoles
Ladders
Staircases
Automatic car parking
High-bay warehouses

Building materials

Approved for:

Concrete C20/25 to C50/60, cracked and non-cracked

You can find detailed information on building materials in the registration document.

Approvals

ETA-23/0162
DoP No. 0335

Functionality

The FAZ II Classic is suitable for pre-positioned and push-through installation.
When applying the torque, the cone bolt is pulled into the expansion sleeve and expands it against the drill hole wall.
The anchor is set in line with the approval once the preset installation torque is achieved.
In the case of series installation, we recommend using the FABS or FA-ST II anchor bolt setting tools.
In case of seismic demands, the annular gap must be filled using the filling disc FFD.

Mounting Strip 1 Picture

1 / 5

Mounting Strip 2 Picture

1 / 4

ETA-approval
Seismic-Approval	C1
Drill diameter ( d₀ )	8 mm
Min. drill hole depth for through fixings ( h₂ )	68 mm
Max. usable length hef,stand./hef,min. ( t_fix )	10 / 20 mm
Anchor length ( l )	77 mm
Thread ( ø x length )	M8 x 38 mm
Width across nut	13 mm
Installation torque ( T_inst )	20 Nm
Amount	50 pcs.
GTIN (EAN-Code)	4048962505436

ETA-approval
Seismic-Approval	C1
Drill diameter ( d₀ )	8 mm
Min. drill hole depth for through fixings ( h₂ )	88 mm
Max. usable length hef,stand./hef,min. ( t_fix )	30 / 40 mm
Anchor length	—
Thread ( ø x length )	M8 x 58 mm
Width across nut	13 mm
Installation torque ( T_inst )	20 Nm
Amount	50 pcs.
GTIN (EAN-Code)	4048962505443

ETA-approval
Seismic-Approval	C1
Drill diameter ( d₀ )	8 mm
Min. drill hole depth for through fixings ( h₂ )	108 mm
Max. usable length hef,stand./hef,min. ( t_fix )	50 / 60 mm
Anchor length	—
Thread ( ø x length )	M8 x 78 mm
Width across nut	13 mm
Installation torque ( T_inst )	20 Nm
Amount	50 pcs.
GTIN (EAN-Code)	4048962505450

ETA-approval
Seismic-Approval	C1
Drill diameter ( d₀ )	8 mm
Min. drill hole depth for through fixings ( h₂ )	158 mm
Max. usable length hef,stand./hef,min. ( t_fix )	100 / 110 mm
Anchor length	—
Thread ( ø x length )	M8 x 128 mm
Width across nut	13 mm
Installation torque ( T_inst )	20 Nm
Amount	25 pcs.
GTIN (EAN-Code)	4048962505467

ETA-approval
Seismic-Approval	C1 / C2
Drill diameter ( d₀ )	10 mm
Min. drill hole depth for through fixings ( h₂ )	85 mm
Max. usable length hef,stand./hef,min. ( t_fix )	10 / 30 mm
Anchor length	—
Thread ( ø x length )	M10 x 53 mm
Width across nut	17 mm
Installation torque ( T_inst )	45 Nm
Amount	50 pcs.
GTIN (EAN-Code)	4048962505498
