PowerFast FPF-PT ZPF

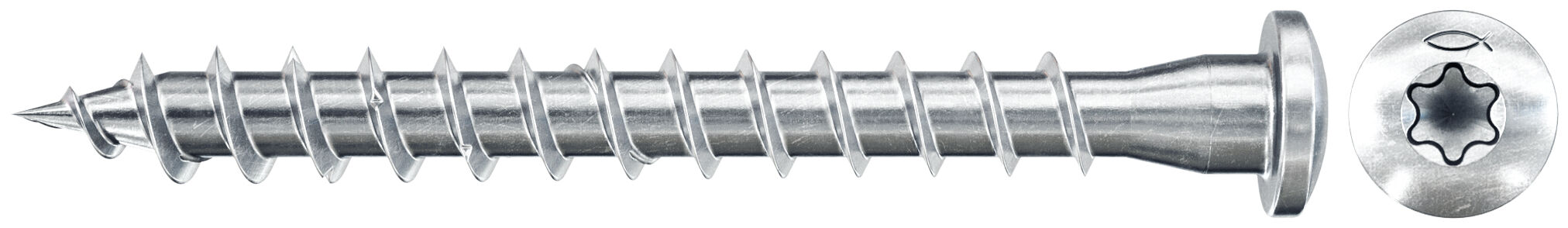

  • Product Picture: "fischer PowerFast 5.0 x 50 blue zinc-plated full thread"

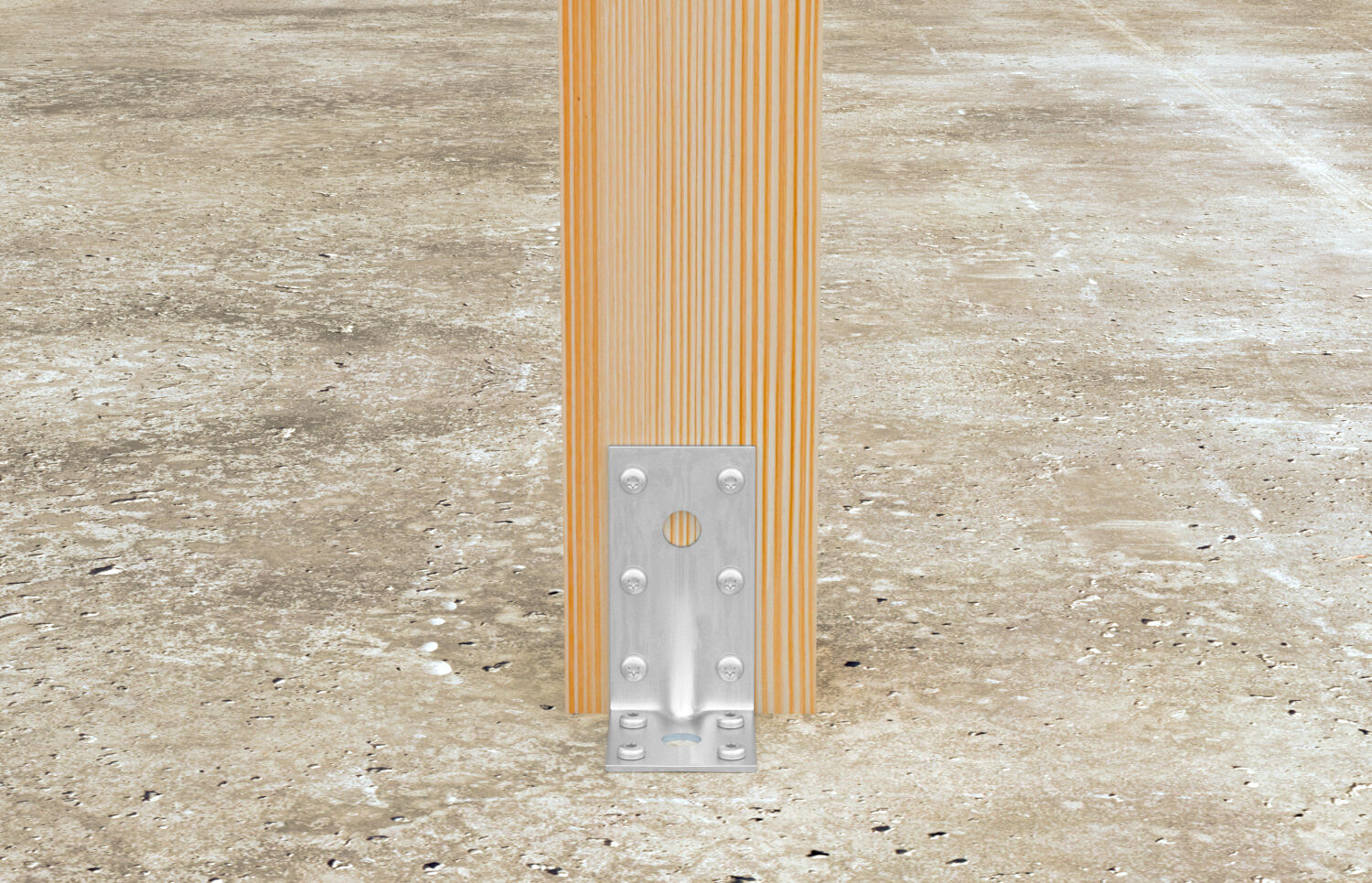

  • Application Picture

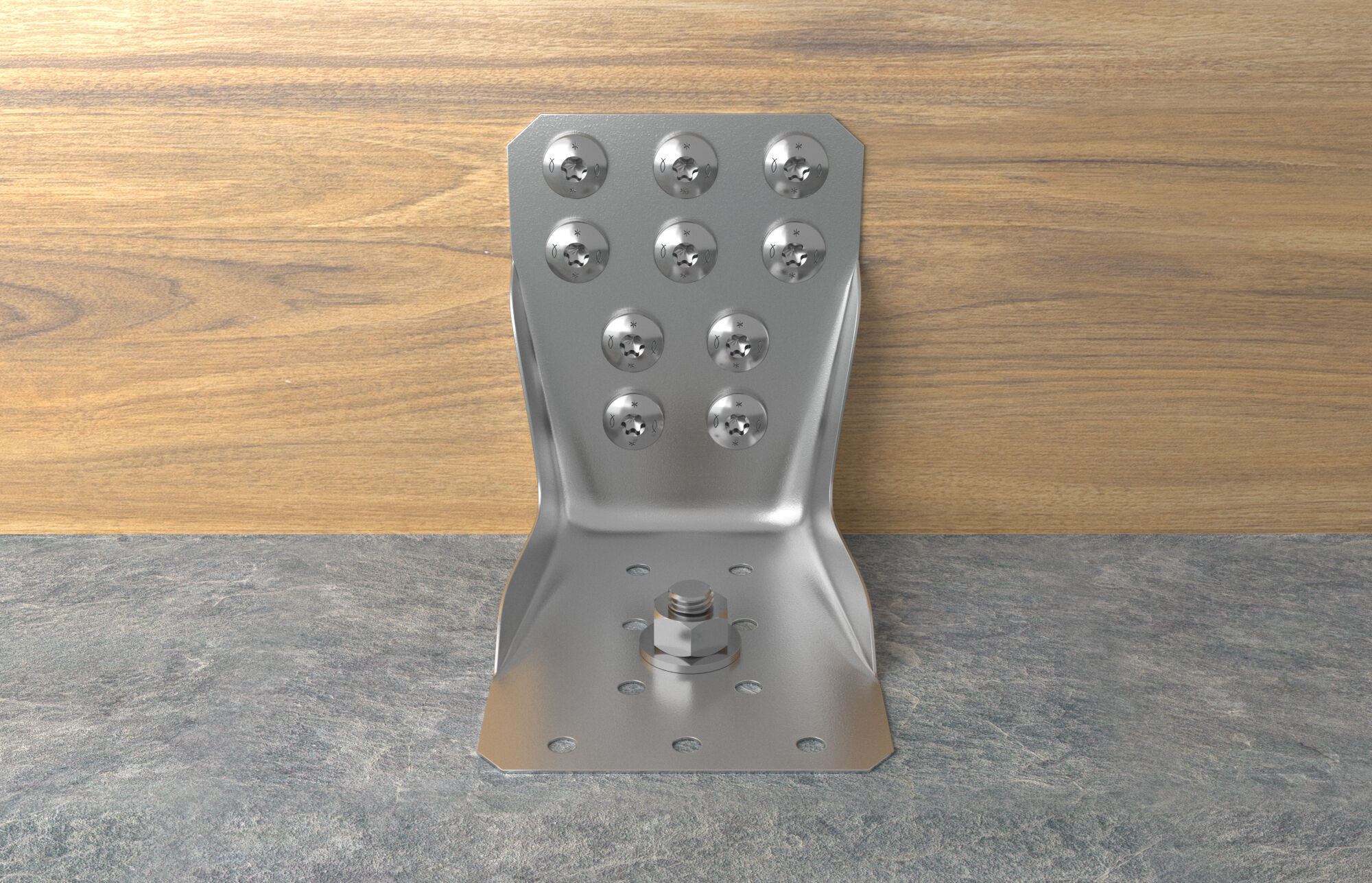

  • Application Picture
    • Application Picture
    • Product Picture
    • Application Picture
      Номер артикула 652881

      fischer PowerFast 5.0 x 50 blue zinc-plated full thread

      Варианты продукта
      Download of image data

      Преимущества / Описание продукта

      The wood connector screws with TX star recess drive and full thread
      Advantages
      • The wood connector screw with the optimised head geometry and cylindrical underhead is ideally suited for the standardised fixing holes of metal wood connectors. This ensures the maximum force transmission from the screw to the wood connector.
      • The unique PowerFast thread reaches into the screw tip and ensures a fast bite. This makes your work noticeably easier with all wood materials.
      • The high-performance easy-glide coating reduces friction and accelerates the screwing process.
      • The ETA approval guarantees the high safety standard and the premium quality of fischer PowerFast screws.
      The fischer wood connector screw PowerFast FPF-PT ZPF with pan head, cylindrical underhead, TX star recess drive and full thread is ideal for the screwing of timber connectors such as brackets and joist hangers made from metal. The special head shape is tailored to the standardised hole diameters of the timber connectors. The TX star recess drive enables top force transmission with maximum bit stability. The unique PowerFast thread reaches into the screw tip and ensures fast bite. The full thread offers increased extraction resistance thanks to the longer thread. The European Technical Approval provides added safety.

      Заявка и подтверждение

      Applications
      • Screwing of wood connectors
      Building materials
      • Wooden materials
      • Timber connectors
      Подробную информацию о строительных материалах Вы можете найти в технической документации.
      Технические оценки
      • ETA-11/0027
      • DoP No. W0003

      Инструкция по монтажу

      Functionality
      • Special screws for the fixing of timber connectors made from metal to wooden materials (for example, soft woods). Maximum force transmission thanks to cylindrical underhead.

      Технические данные

      ETA-approval
      Diameter (
      d
      )      		5 mm
      Length (
      l
      )      		50 mm
      Drive TX star recess
      Thread length (
      lg
      )      		45 mm
      Packaging Folding box
      Amount 200 pcs.
      GTIN (EAN-Code) 4048962254037

      Документы для скачивания

      • ETAs and DoPs
      ETA Certification Document
      pdf, ETA-11/0027
      European Technical Assessment for fischer Power-Fast screws and fischer construction screws - Screws for use in timber constructions
      Создано 02/01/2019
      DOP - Declaration of Performance
      pdf, DoP No. W0003
      Declaration of Performance for fischer Power-Fast screws and fischer construction screws
      Создано 16/01/2021
