Allows a sliding suspension of pipelines by means of pipe clamps
Effectively compensates for linear expansion of pipelines
Application-specific corrosion protection through galvanisation
For use in dry interior areas.
(SB M 10) Fire protection test F120 and Model Conduit Systems Test MLAR F30.
The advantages / Product description
Sliding element for absorption of axial length adjustments.
Advantages
The design of the sliding hanger allows pipes to be mounted securely and easily.
The sliding hanger is ideally suited to adjust the axial length of pipelines.

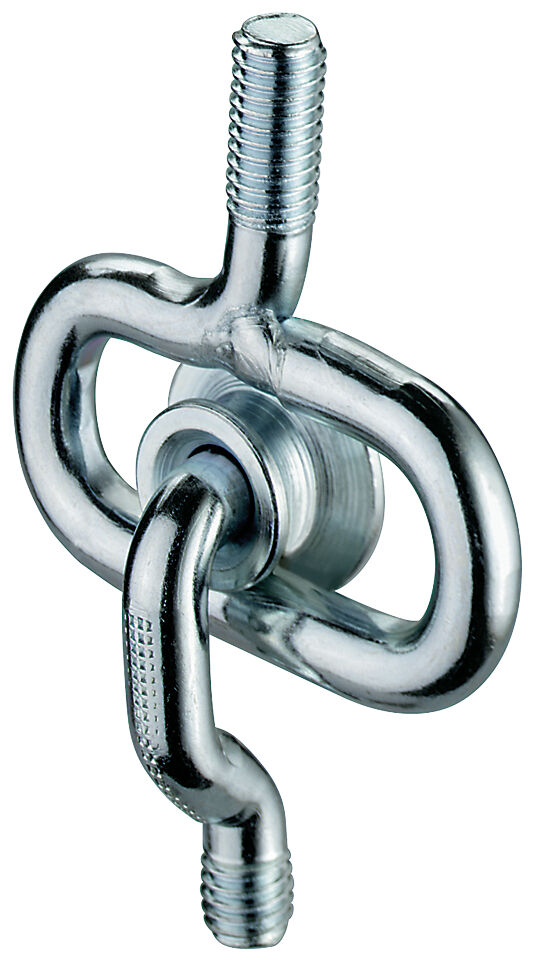

The fischer sliding hanger SB is a sliding element with a long sliding distance for the absorption of axial length adjustments to pipelines. The design of the sliding hanger allows pipes to be mounted securely and to glide easily. Thread M 8.
Properties
Material: steel DD11 (material no. 1.0332) acc. to DIN EN 10111
Zinc plating: electro zinc-plated, min. 3 µm
Application and approval
Applications
Adjustments of axial length to pipelines
Installation of sliding elements in line with the expected length expansions (Ensuring that no sliding distance is lost and sliding isn't inhibited)
