Sway brace bracket FSF-FM

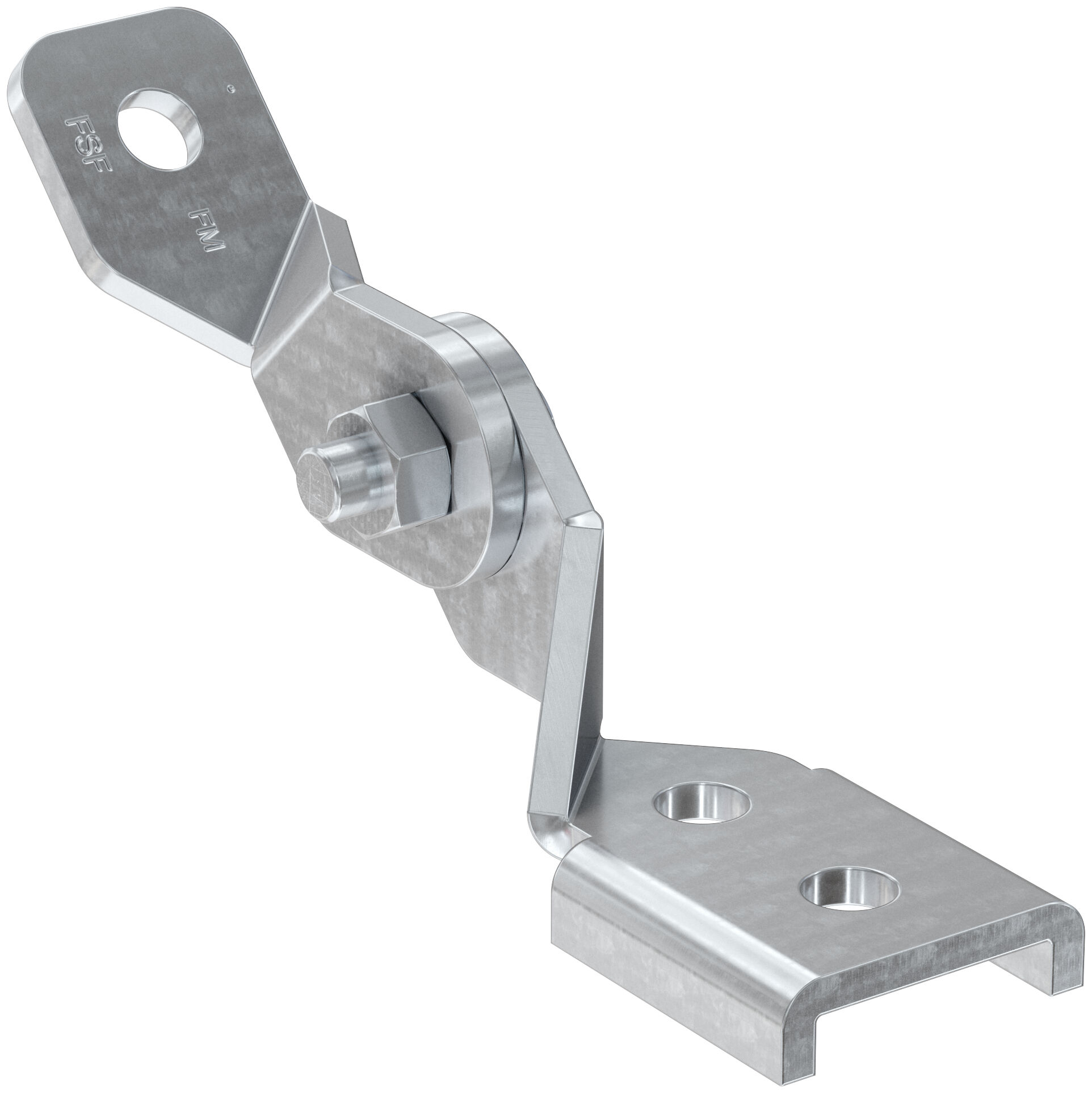

  • Product Picture: "fischer Sway brace bracket FSF-FM gvz"

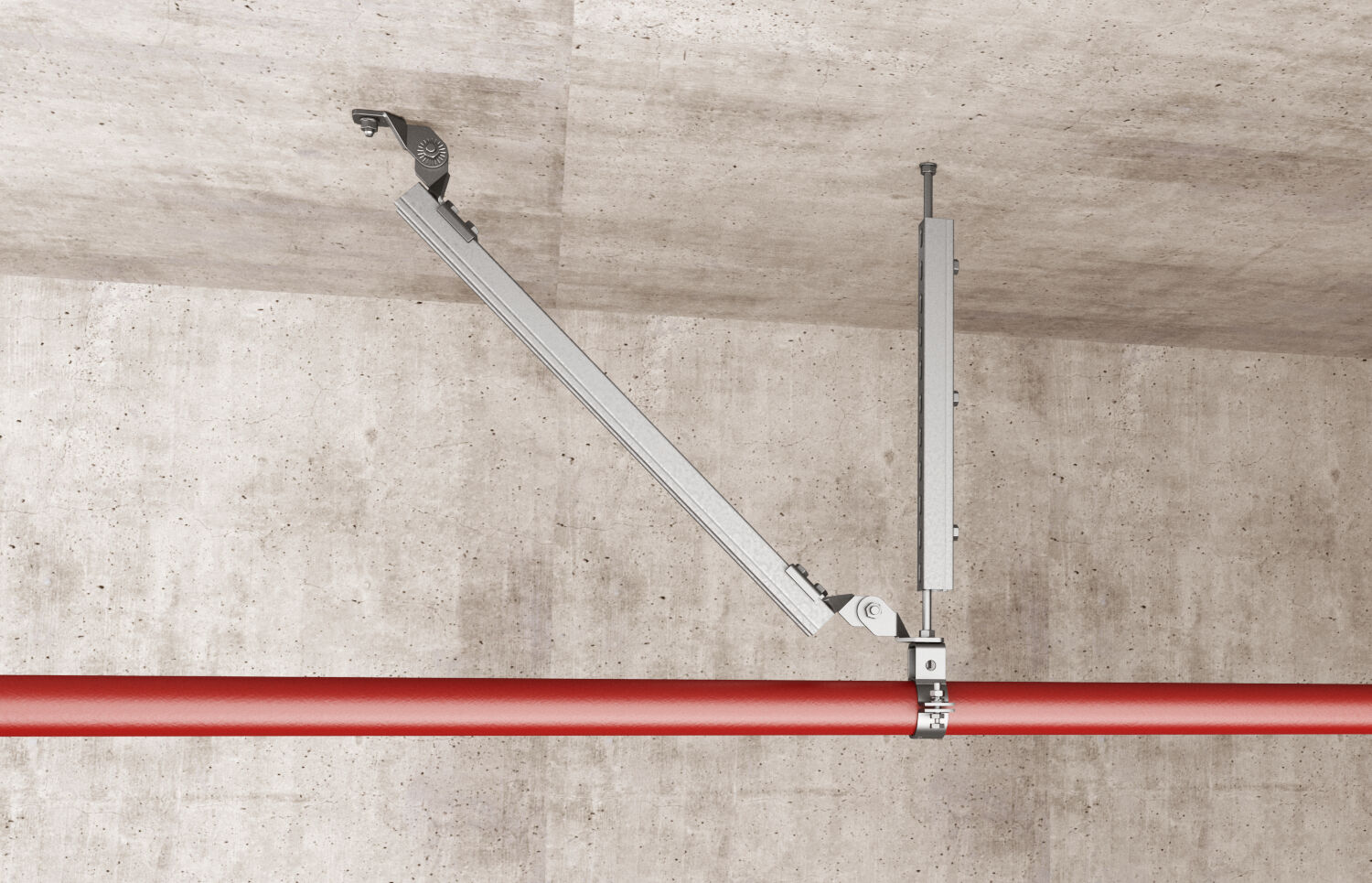

  • Application Picture
    • Product Picture
    • Application Picture
      Art.-No. 547763

      fischer Sway brace bracket FSF-FM gvz

      Product variants
      CAD Data
      Download of image data
      Top Features
      • The sway brace bracket for connecting FUS channel profiles provides very high stability and safety to a supporting structure.
      • The exact fit of the sway brace bracket and the FUS channel profiles enables quick and easy channel connection.
      • The FM-approval of the FSF-FM sway brace bracket guarantees objectively tested functional safety.

      The advantages / Product description

      Sway brace bracket with FM approval for both lateral and longitudinal sway brace applications.
      Advantages
      • The sway brace bracket for connecting FUS channel profiles provides very high stability and safety to a supporting structure.
      • The exact fit of the sway brace bracket and the FUS channel profiles enables quick and easy channel connection.
      • The FM-approval of the FSF-FM sway brace bracket guarantees objectively tested functional safety.
      Due to its exact fit, the sway brace bracket FSF-FM enables the quick and easy connection of two channel profiles or of a channel profile and the substrate. It enables the bracing of frame constructions and supporting structures and thus provides very high stability and safety to them. Both lateral and longitudinal sway brace applications can be realised with the FSF-FM sway brace bracket.
      Properties
      • Material: steel Q235B
      • Zinc plating: electro zinc-plated

      Application and approval

      Applications
      • Connecting element for stable connections between two channel profiles or one channel profile and the substrate
      • For bracing frame constructions with FUS channel profiles

      Assembly instruction

      Functionality

      Technical data

      Amount 10 pcs.
      GTIN (EAN-Code) 4048962338294
