Channel brace connector S-VB

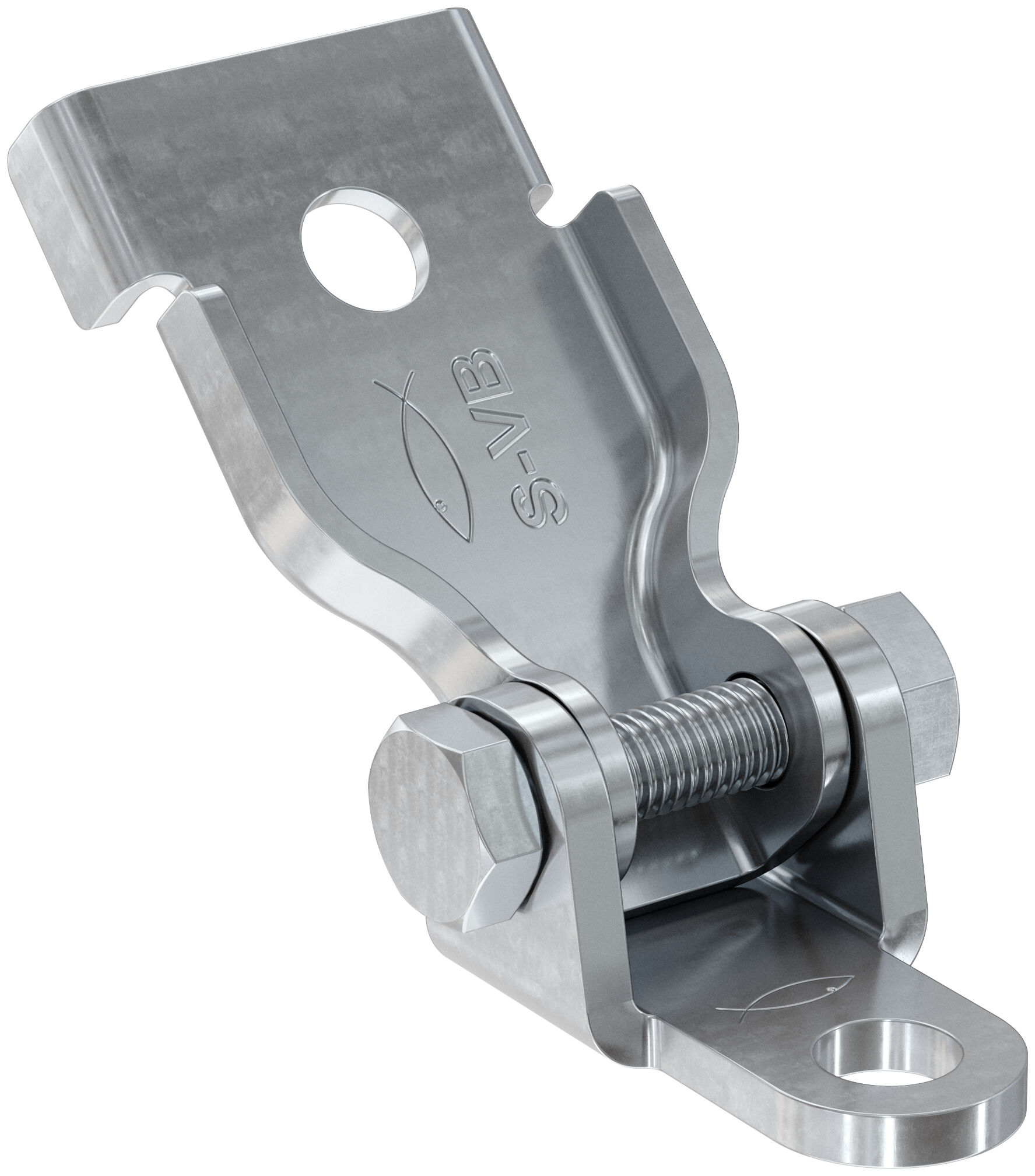

  • Product Picture: "fischer Channel brace connector S-VB"

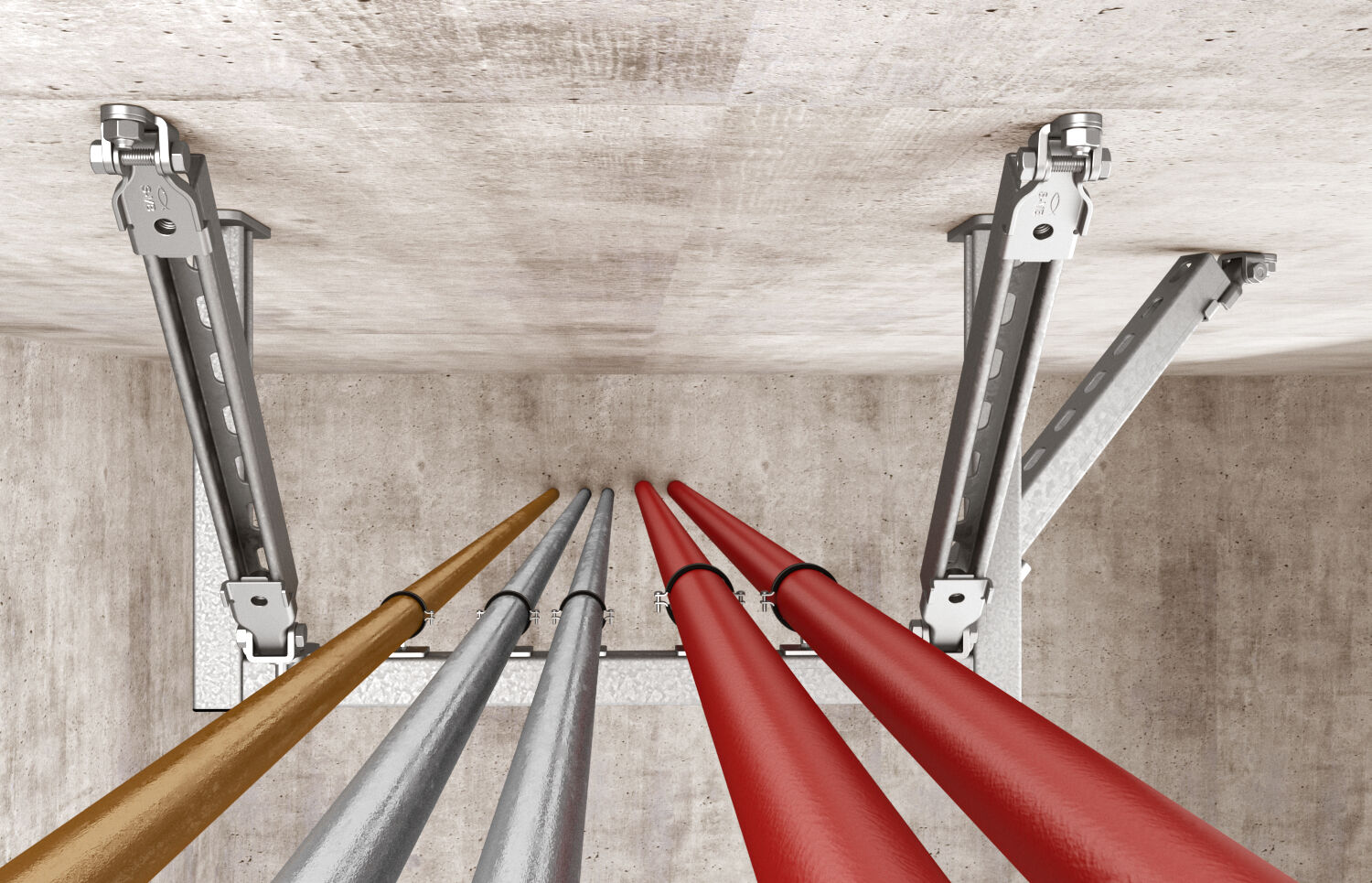

  • Application Picture
    • Product Picture
    • Application Picture
      Art.-No. 552362

      fischer Channel brace connector S-VB

      Product variants
      CAD Data
      Download of image data
      Top Features
      • The design of the channel brace connector S-VB allows a variable fixation at angles between 30° and 65° for a flexible adaptation to the existing construction.
      • The lamellae bent upwards and downwards allow the easy installation of the channel profile to the channel brace connector.
      • The possibility to mount two channel brace connectors on top of each other offers the option to clamp the same point in different directions.

      The advantages / Product description

      Channel brace connector for seismic bracing of framework constructions with FUS channel profiles.
      Advantages
      • The design of the S-VB bracing element allows a variable angle of inclination of 30°-65° for flexible installation of the bracing.
      • The upwardly and downwardly curved louvres allow the profiles to be easily accommodated in various mounting configurations.
      • The ability to mount two bracing elements on top of each other offers the option of bracing the same point in different directions.
      The channel brace connector S-VB allows the bracing of framework constructions with channel profiles. The intelligent design of the channel brace connector allows to quickly insert the channel profile. To provide additional safety, two channel brace connectors can be mounted on top of each other to brace the same point in multiple directions.
      Properties
      • Material bracket: steel S275JR (material no. 1.0044) acc. to DIN EN 10025-2
      • Material supporting plate: steel S355MC (material no. 1.0976) acc. to DIN EN 10149-2
      • Screw: M10x45, strength class 8.8, electro zinc-plated
      • Nut: M10, strength class 8, electro zinc-plated

      Application and approval

      Applications
      • For reinforcing both new and already installed frame constructions with mounting profiles.

      Assembly instruction

      Functionality

      Technical data

      Amount 10 pcs.
      GTIN (EAN-Code) 8001132098646
