Pipe clamp FRS Plus
  • Product Picture: "fischer Pipe clamp FRS Plus 3" E item pricing"
  • Packaging: "fischer Pipe clamp FRS Plus 3" E item pricing"
  • Application Picture
  • Application Picture
    • Application Picture

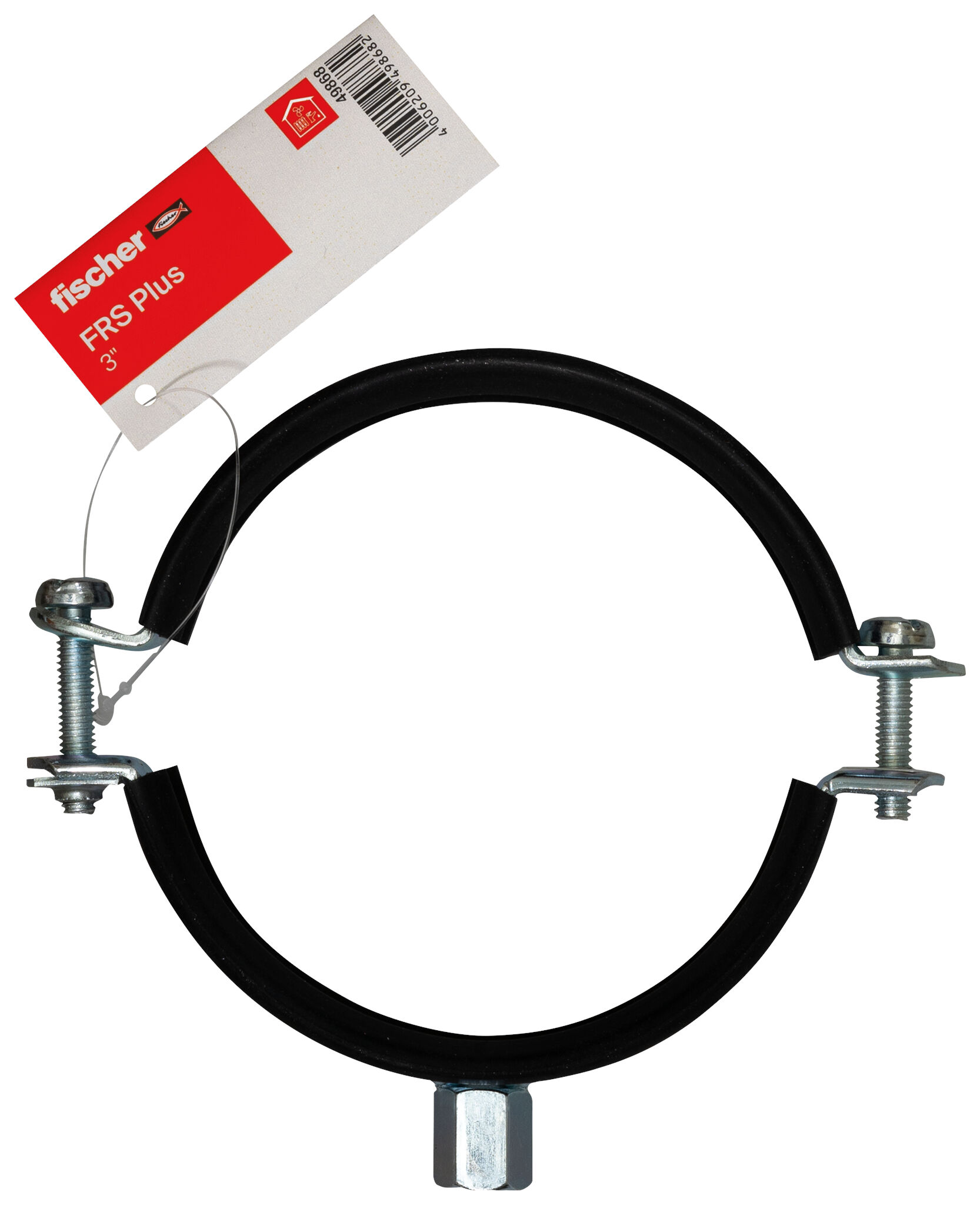

    • Product Picture

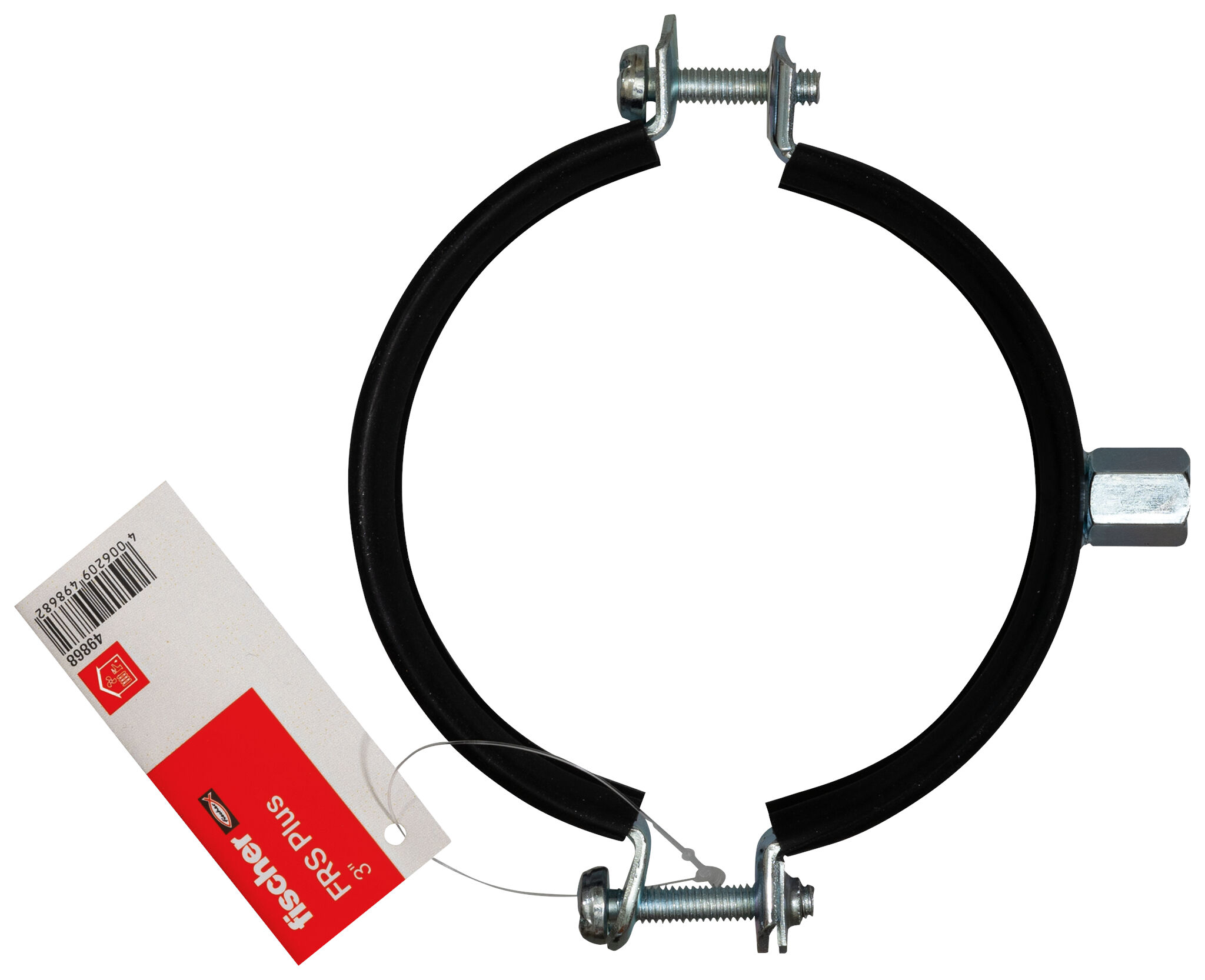

    • Packaging
    • Application Picture
      Art.-No. 49868

      fischer Pipe clamp FRS Plus 3" E item pricing

      Ürün çeşitleri
      Download of image data
      Top Features
      • Rapid-locking mechanism for pipe adjustment.
      • Sound insulation insert.
      • Two screws allow for ideal adaptation to the outer pipe diameter.
      • Loss protection of screw.

      Avantajlar / Ürün açıklaması

      The two-screw pipe clamp with rapid-locking mechanism.
      Advantages
      • The rapid-locking mechanism allows for fast and time-saving installation.
      • The safety latch fastening guarantees pipe installation without the clamp springing open.
      • The tight fit of the sound insulation insert prevents it from falling out when aligning the pipe.
      • The combination connecting nut with M8/M10 thread enables optimised mounting choices.
      • The two screws allow an easy adjustment to suit the outer pipe diameter.
      • The screw's safety feature ensures trouble-free installation.
      The fischer pipe clamp FRS Plus allows for simple, time-saving assembly of pipelines thanks to a rapid-locking mechanism. The two screws allow for ideal adaptation to suit the outer pipe diameter. The safety mechanism and fixed sound insulation insert guarantee safe pipe adjustment. Connecting nut with combination thread M8/M10 for holding threaded rods or hanger bolts. Pipe clamp screws with loss protection.
      Properties
      • Material: steel DD11 (material no. 1.0332) acc. to DIN EN 10111
      • Zinc plating: electro zinc-plated
      • Connecting nut: resistance welded, M8/M10, SW 13
      • Locking screw: flat head screw with TX drive (M5=TX25, M6=TX30)
      • Material sound insulation insert: EPDM; chlorine-free; silicone-free
      • Sound insulation: for DIN 4109
      • Temperature range: -40 °C to +100 °C
      • Hardness: 55 ± 5° Shore A
      • Fire behaviour: DIN 4102: Class B2

      Uygulamalar ve Onaylar

      Applications
      • For simple and easy fixing of pipes using threaded rods or stud screws
      Onaylar
      • FEB/FS-75/13 - 3

      Montaj talimatı

      Functionality
      Mounting Strip 1 Picture
      1 / 4
      • 1
        Mounting Strip 1 Picture
      • 2
        Mounting Strip 1 Picture
      • 3
        Mounting Strip 1 Picture
      • 4
        Mounting Strip 1 Picture

      Teknik veriler

      Thread (
      A
      )      		M8 / M10
      Size 3 in
      Width (
      B
      )      		139 mm
      Width x thickness clamp band (
      b x s
      )      		20 x 1.8 mm
      Height (
      Z
      )      		66 mm
      Locking screw M6
      Contents 1 x Pipe clamp FRS Plus 89 - 92
      Amount 1 pcs.
      GTIN (EAN-Code) 4006209498682

      İndirilecek belgeler

      • Approvals and Certificates
      Test Certificate
      pdf, FEB/FS-75/13 - 3
      FEB - Report - Measurement of the insertion loss of the pipe clamp FRS Plus for 4‘‘ sewer pipes
      12/07/2014 tarihinde oluşturuldu
