Hinged pipe clamp FKS for plastic pipes
  • Product Picture: "fischer Hinged pipe clamp FKS Plus for plastic pipes FKS Plus 56 - 63"
  • Application Picture
    • Product Picture
    • Application Picture
      Art.-No. 79477

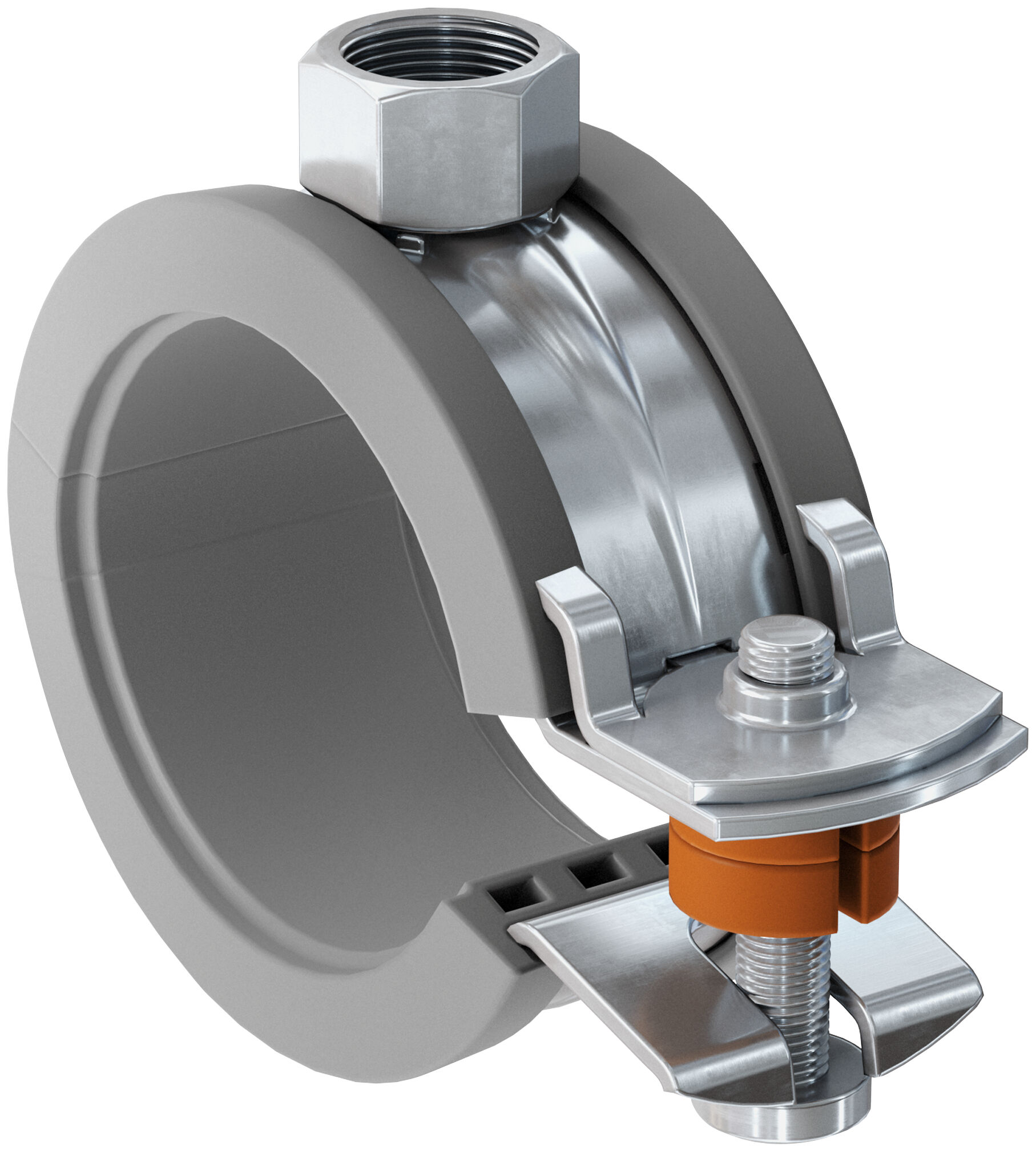

      fischer Hinged pipe clamp FKS Plus for plastic pipes FKS Plus 56 - 63

      Product variants
      CAD Data
      Download of image data

      The advantages / Product description

      The one-screw hinged pipe clamp with quick-release fastener for plastic and metal composite pipes.
      Advantages
      • The quick-release fastener allows a fast and time-saving installation.
      • The spacing sleeves on the locking screw stops over tightening of the pipes.
      • The tight fit of the sound insulation insert prevents it from falling out when inserting the pipe.
      • The compact construction of the hinged pipe clamp enables a simple post-installation insulation.
      • The screw's design stops it falling out during the installation.
      The fischer plastic hinged pipe clamp FKS Plus with rapid-locking mechanism allows for fast, time-saving installation of pipelines. The distance sleeves on the locking screw guarantee the gliding of the pipes with length expansions. Connecting nut with thread M 8 for holding threaded rods or hanger bolts. Pipe clamp screws with loss protection.
      Properties
      • Material: steel DD11 (material no. 1.0332) acc. to DIN EN 10111
      • Zinc plating: electro zinc-plated
      • Connecting nut: resistance welded, M8, SW 13
      • Locking screw: flat head screw with combination recessed head
      • Material sound insulation insert:: NR/SBR/EPDM; chlorine-free; silicone-free
      • Sound insulation: for DIN 4109
      • Temperature range: -40 °C to +110 °C
      • Hardness: 60 ± 5° Shore A
      • Fire behaviour: DIN 4102: Class B2

      Application and approval

      Applications
      • Time-saving fixing for plastic and metal composite pipes using threaded rods or stud screws.
      • Can be used as a slide bracket with spacers or as a fixed point clamp by removing the spacers.
      • For use in dry interior areas.

      Assembly instruction

      Functionality
      Mounting Strip 1 Picture
      1 / 4
      • 1
        Mounting Strip 1 Picture
      • 2
        Mounting Strip 1 Picture
      • 3
        Mounting Strip 1 Picture
      • 4
        Mounting Strip 1 Picture

      Technical data

      Clamping range (
      D
      )      		56 - 63 mm
      Thread (
      A
      )      		M8
      Size 2 in
      Height (
      H
      )      		85 mm
      Width x thickness clamp band (
      b x s
      )      		20 x 1.5 mm
      Height (
      Z
      )      		46 mm
      Locking screw M5
      Amount 50 pcs.
      GTIN (EAN-Code) 4006209794777
