Variable bracket FMVB
547835

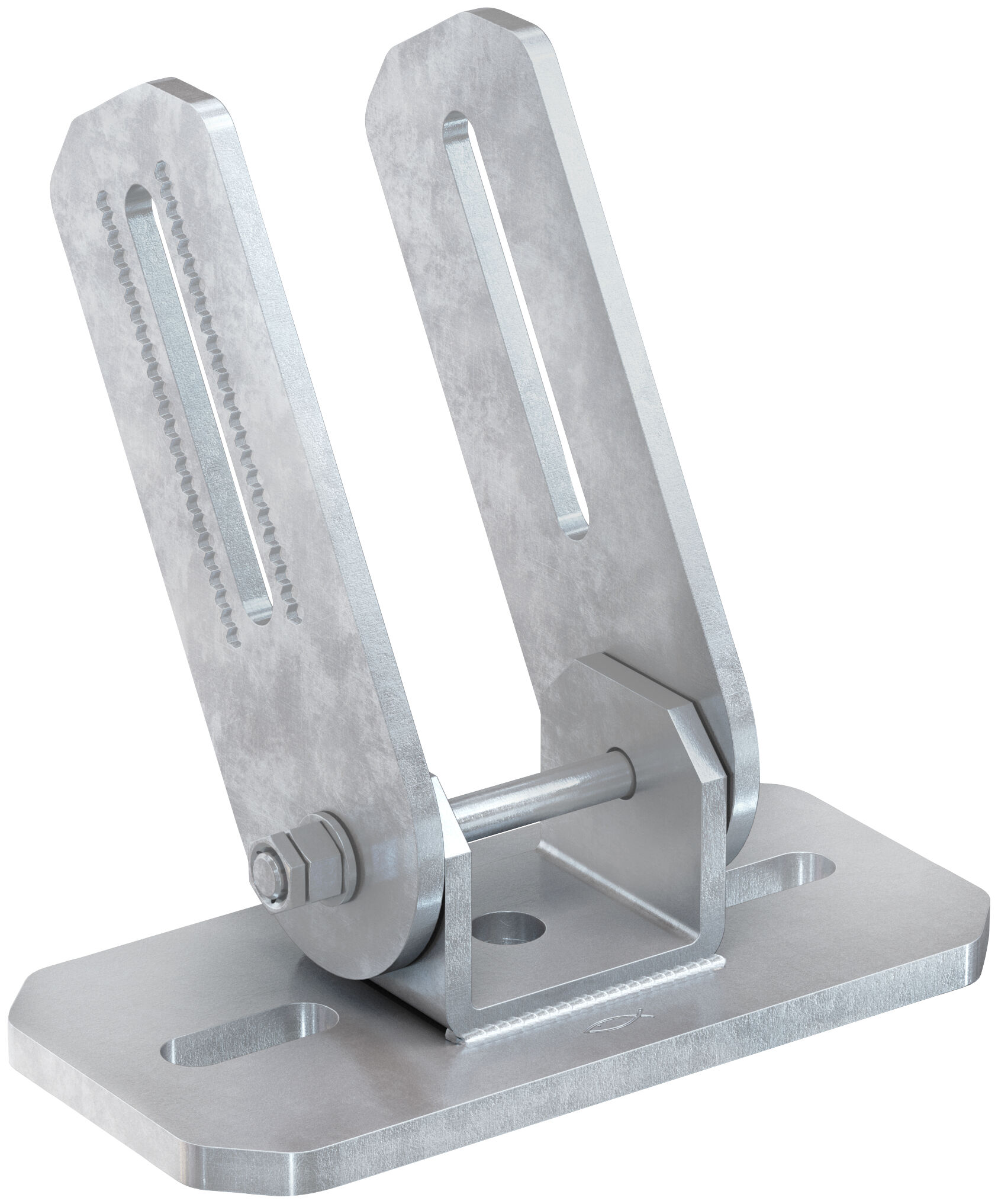

fischer Variable bracket FMVB BP L

CAD Data
Download of image data
Top Features
  • The variable construction elements allow stiffening or support of the profile construction at any angle and are therefore suited for versatile use.
  • The stable design and the size gradation of the FMVB base plates offer the optimum fixing option depending on the construction and ensure a secure hold.
  • The version of the FMVB variable bracket with slot and grating to accommodate the toothed plate of the FMHB hammer-head push connector allows optimum adjustment of the supported profile for simple and safe installation.

Variable bracket FMVB - variable connection of FMP massive profiles to each other and to the substrate
Advantages
  • The variable construction elements allow stiffening or support of the profile construction at any angle and are therefore suited for versatile use.
  • The stable design and the size graduation of the FMVB base plates offer the optimum fixing option depending on the construction and ensure a secure hold.
  • The FMVB variable bracket with slot and grating to accommodate the toothed plate of the FMHB hammer-head push connector allows optimum adjustment of the supported profile for simple and safe installation.
  • Supplying the FMVB articles as a set with the necessary screw, hexagonal nut and washer ensures error-free installation.
fischer variable brackets are optimal connectors from channel to channel as well as channel to substrate or steel work. The connection to the FMP massive profile is made throughout with the fischer FMHB hammer-head push connector or through beam clamps and anchors to the substrate. The hot-dip galvanised version with high layer thickness is suitable for outdoor installations and in corrosive environments.
Properties
  • Material: steel S235JR (material no. 1.0038) acc. to DIN EN 10025-2
  • Zinc plating: hot-dip galvanised acc. to DIN EN ISO 1461
  • Material: steel grade 8.8
Youtube VideoYoutube VideoYoutube Video

Applications
  • Constructions of FMP massive profiles at an angle of 0° to 180°.
  • Mounting elements for the design of supporting structures with the FMP massive profiles.
  • Element for the stable construction of connections between channels and building structures.
  • For indoor and outdoor application.

Functionality
Mounting Strip 1 Picture
1 / 10

Length (
L
)		400 mm
For steel beam width 240 - 300 mm
Width (
B
)		125 mm
Thickness (
S
)		15 mm
Amount 2 pcs.
GTIN (EAN-Code) 4048962339000
