Art.-No. 547804

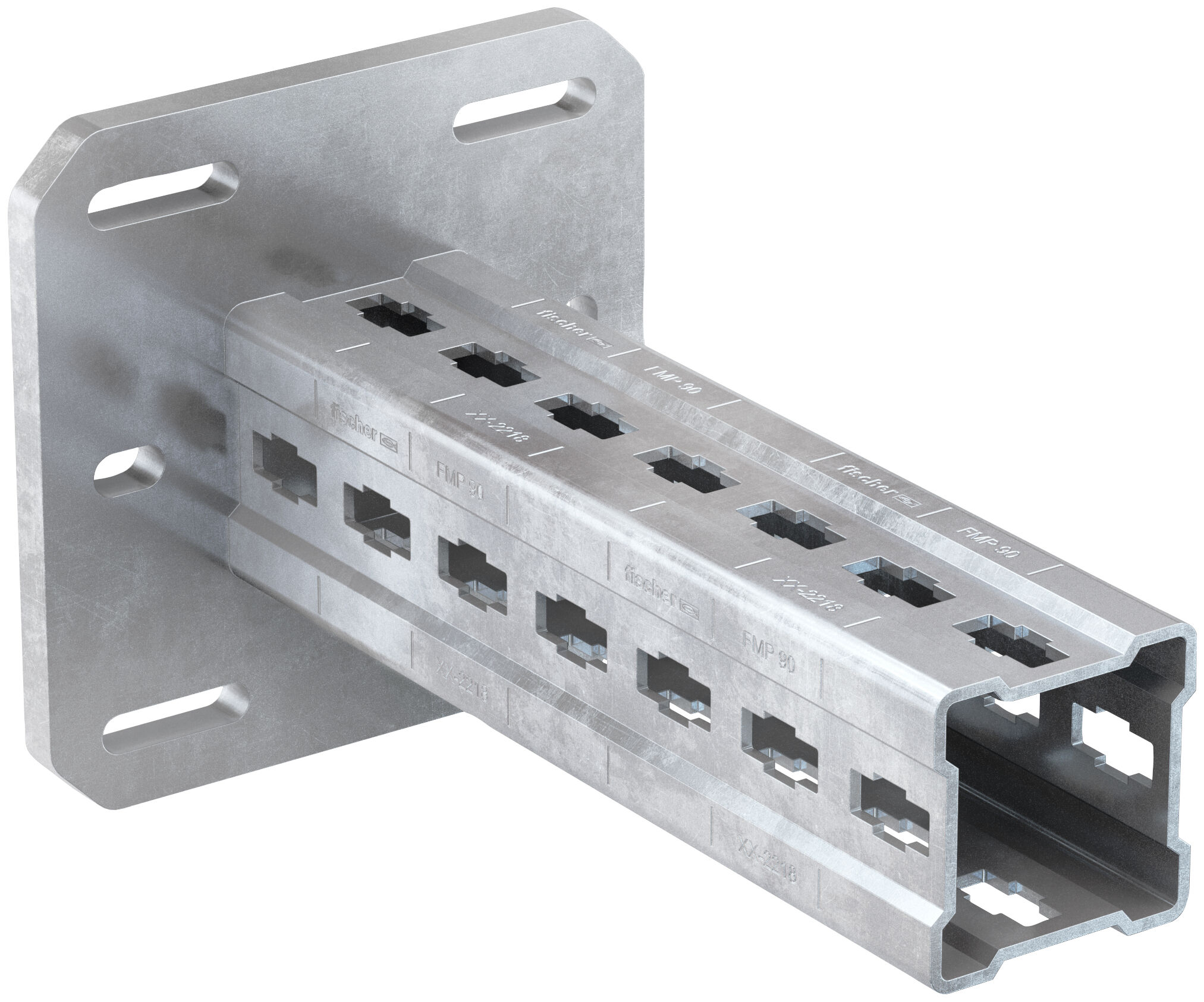

fischer Cantilever arm FMC 90 - 1000

Name: fischer Cantilever arm FMC 90 - 1000
Brand: fischer

Product variants

CAD Data

Download of image data

Top Features

The graduated length assortment of the FMC cantilever arms allows an optimal adaptation to the respective application.
The stable base plate of the cantilever provides a secure hold for a load-bearing construction.
The completely hot-dip galvanised product range guarantees on-site processing without subsequent coating and simplifies and accelerates the assembly process sustainably.

Mounting profiles with welded base plate for fastening heavy duty pipelines

Advantages

The graduated length assortment of the FMC cantilever arms allows an optimal adaptation to the respective application.
The stable base plate of the cantilever provides a secure hold for a load-bearing construction.
The completely hot-dip galvanised product range guarantees on-site processing without subsequent coating and simplifies and accelerates the assembly process sustainably.

The cantilever arm FMC is the second basic element of the fischer massive channel system FMS and is suitable for fixing heavy pipeline routes along the wall. The cantilever arm is fastened directly to the substrate through the slotted holes in the base plate. fischer offers standard lengths of 500 - 1,500 mm, which avoids time-consuming cutting to length on site. This saves time and money. The hot-dip galvanised version is suitable for outdoor installations.
