Air conditioner fixing MCE
  • Product Picture: "fischer Airconditioner fixing KLIMA KLIK"
  • Product Picture: "fischer Airconditioner fixing KLIMA KLIK"
  • Product Picture: "fischer Airconditioner fixing KLIMA KLIK"
  • Product Picture: "fischer Airconditioner fixing KLIMA KLIK"
  • Product Picture: "fischer Airconditioner fixing KLIMA KLIK"
  • Application Picture
    • Application Picture
    • Product Picture
    • Product Picture
    • Product Picture
    • Product Picture
    • Product Picture
      Art.-No. 521761

      fischer Airconditioner fixing KLIMA KLIK

      Product variants
      Download of image data
      Top Features
      • Complete fixing set with screws and plugs minimises assembly time.
      • With vibration dampers.
      • Flexible positioning of consoles.
      • Alignment without additional aids.
      • Simpler installation due to angular construction with rapid-locking mechanism KLIK.

      The advantages / Product description

      The set for attaching air conditioning systems to walls.
      Advantages

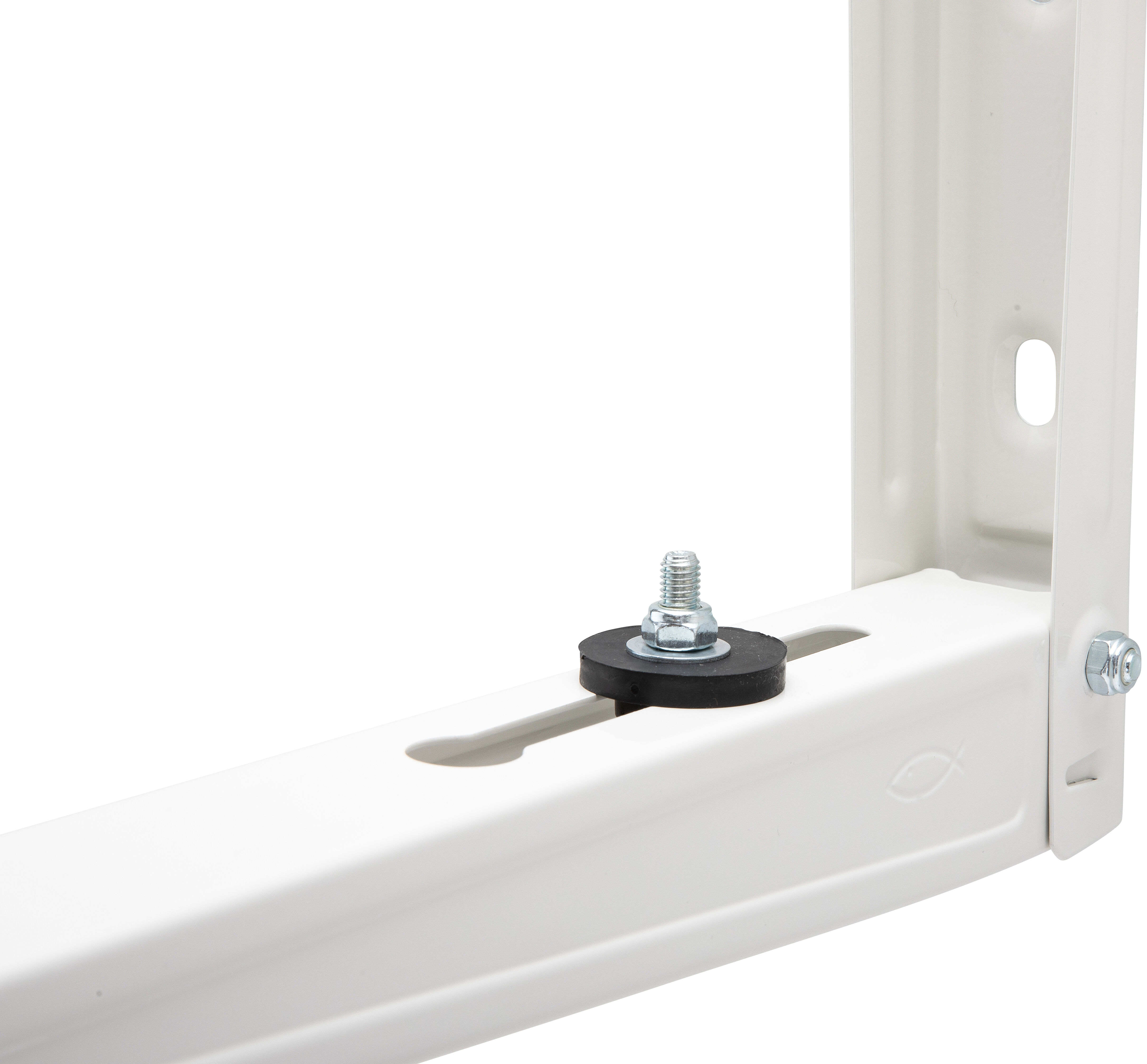

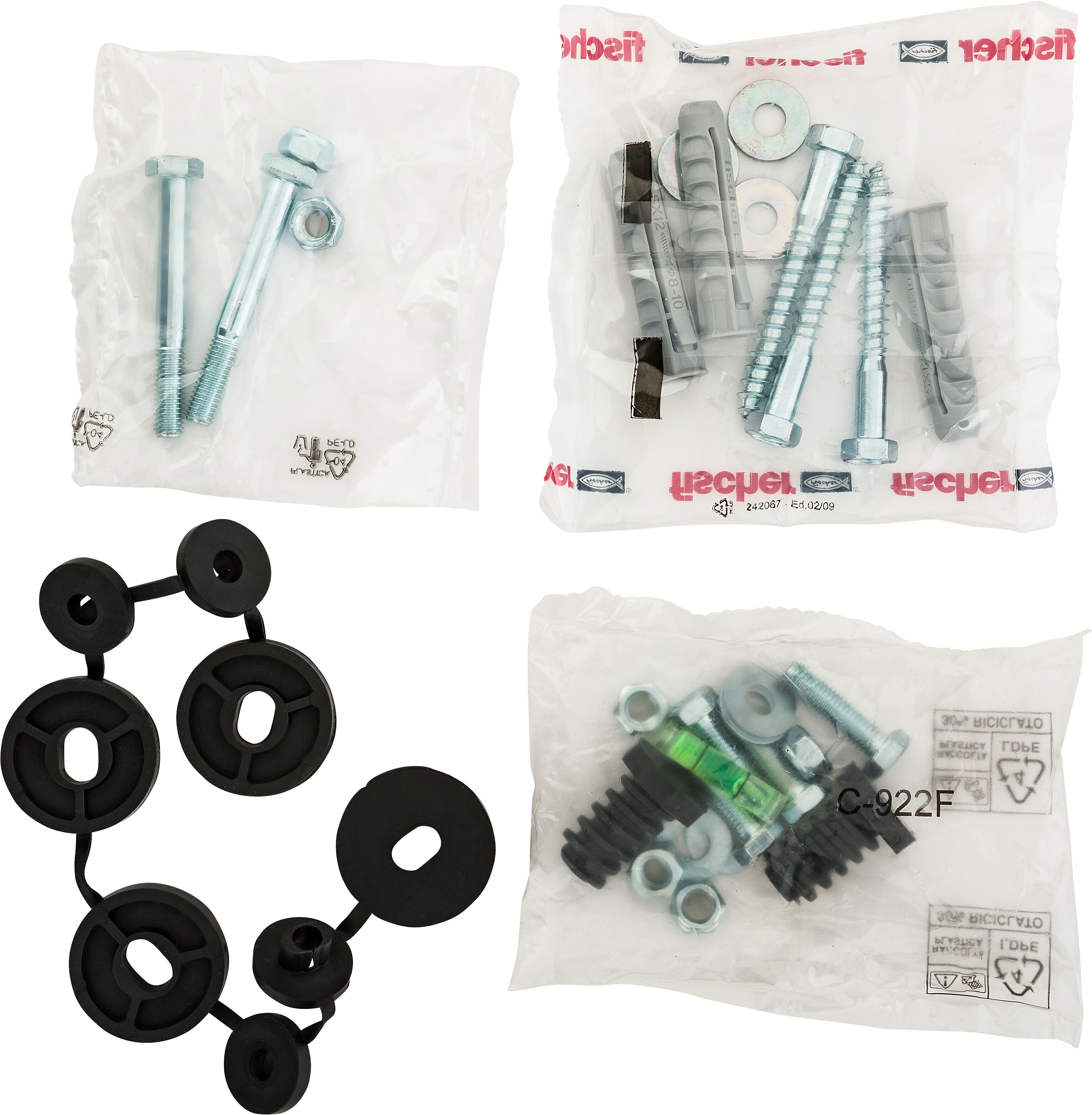

      • The complete kit including anti vibration dumper, SX plug and screws offers an optimised installation security.
      • The brackets with quick snap (Klik) simplify and shorten the installation.
      • The horizontal channel of the MCE Klima Klik allows a flexible adjustment of the brackets and simplifies the installation additionally.

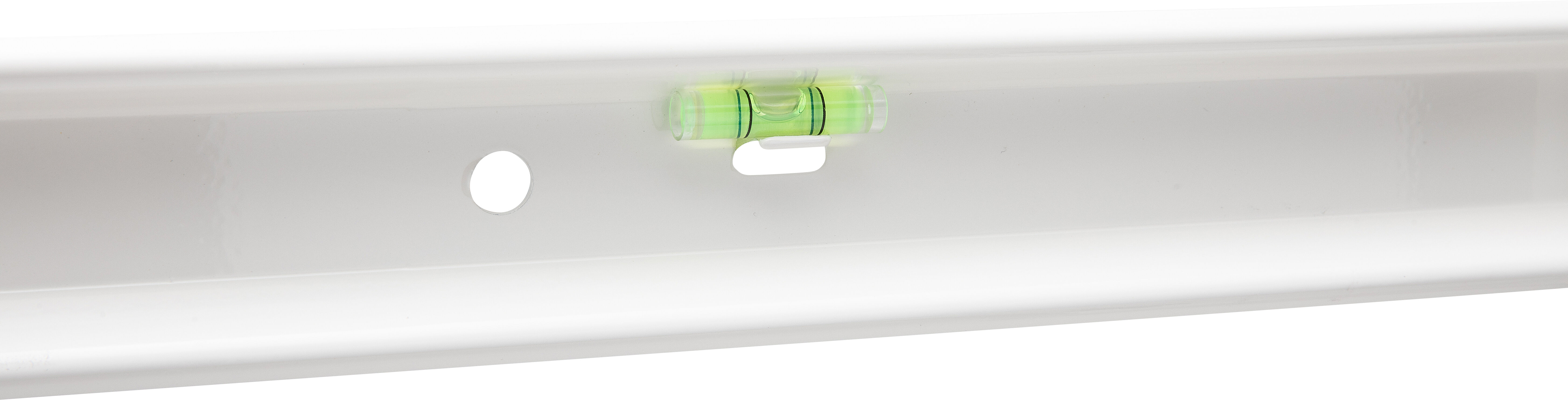

      • The MCE Klima Klik horizontal channel with snap-on bubble level enables the adjustment without additional tools.

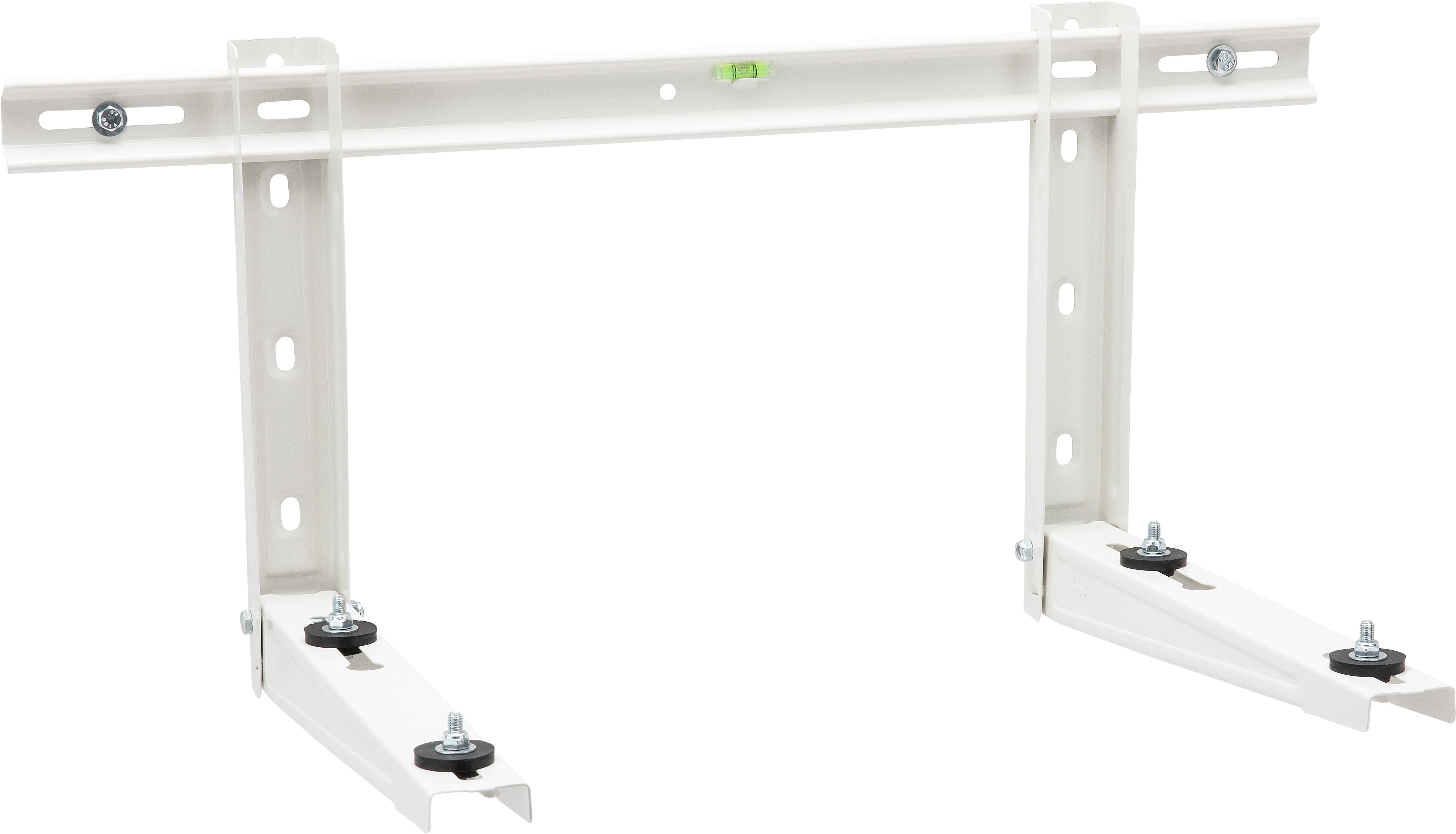

      The fischer KLIMA KLIK is a complete set with fischer SX plugs, screws, and vibration dampers for fixing air-conditioning units to walls with a mounting distance of up to 760 mm. The assembly and fastening elements enable fast, simple assembly without additional aids. The angular construction and the cross profiles are produced from powder-coated steel with RAL colour 9002.
      Properties
      • Material: steel
      • Coating: powder coating
      • Colour: RAL 9002

      Application and approval

      Applications
      • Universal fixing for air conditioners
      • MCE Klima Klik - air conditioner fixing onto walls with max. fixing distance of 760 mm on the horizontal channel
      • Please consider: load bearing capacity of the wall and the quality of the substrate

      Assembly instruction

      Functionality
      Mounting Strip 1 Picture
      1 / 5
      • 1
        Mounting Strip 1 Picture
      • 2
        Mounting Strip 1 Picture
      • 3
        Mounting Strip 1 Picture
      • 4
        Mounting Strip 1 Picture
      • 5
        Mounting Strip 1 Picture
      Mounting Strip 2 Picture
      1 / 5
      • 1
        Mounting Strip 2 Picture
      • 2
        Mounting Strip 2 Picture
      • 3
        Mounting Strip 2 Picture
      • 4
        Mounting Strip 2 Picture
      • 5
        Mounting Strip 2 Picture

      Technical data

      Length (
      L1
      )      		400 mm
      Length (
      L2
      )      		420 mm
      Max. recommended static load load case 1 (
      Frec
      )      		1 kN
      Max. recommended static load load case 2 (
      Frec
      )      		1 kN
      Amount 1 pcs.
      GTIN (EAN-Code) 8001132030974
