Fast and efficient solution for forming service penetrations through concrete floors.

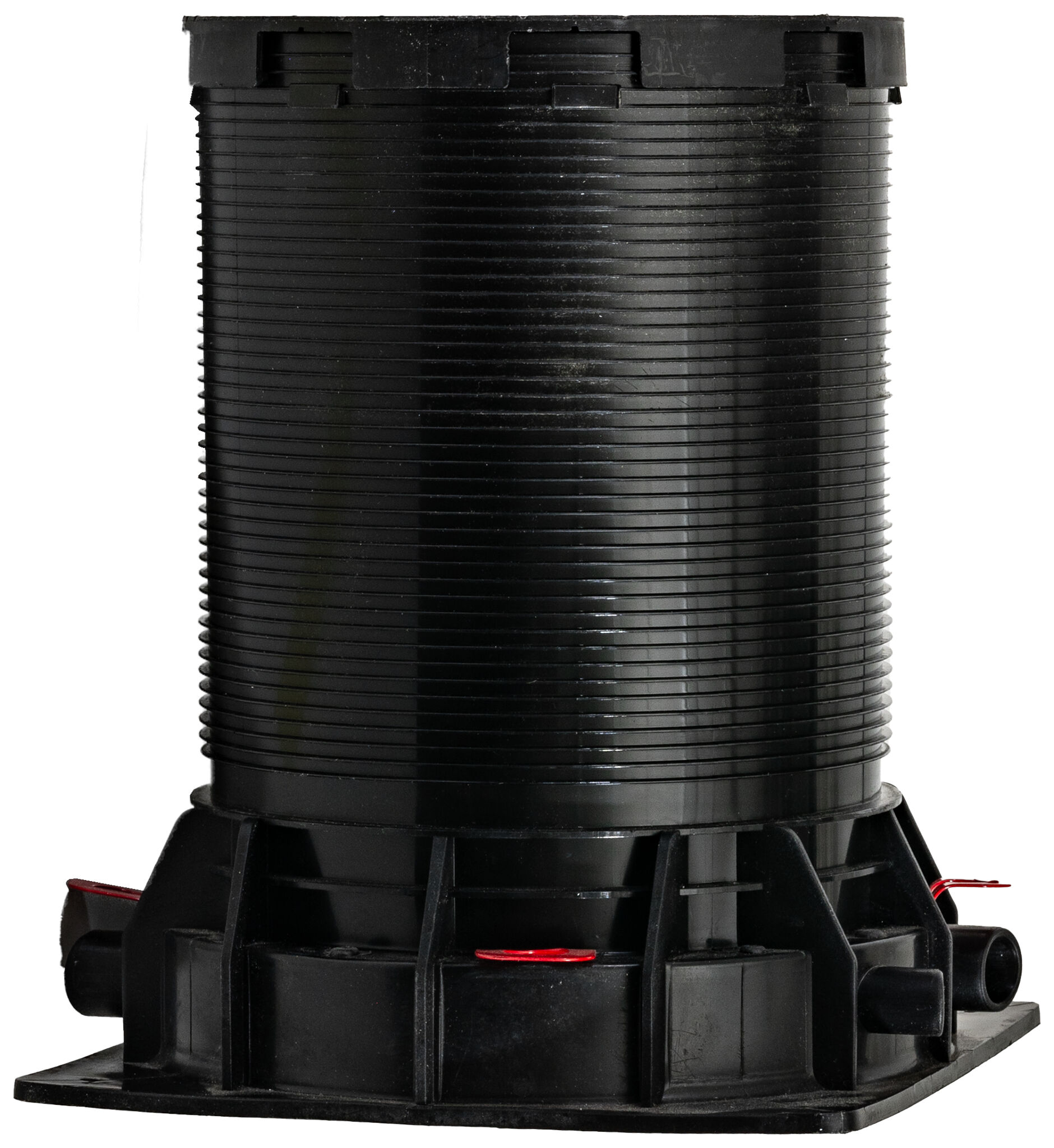

Cast-in Device FCID Plus

fischer FCID Plus Cast In Device is a pass through system which is constructed from a highly resilient polypropylene material and contains a powerful Intumescent graphite band which has been designed for non-metallic pipe applications in reinforced cast concrete slabs and some prefabricated slab systems. (Subject to desig)

Variante de produs

Download of image data

Variante de produs

12 Variantă(e) de produs

Fits pipe-Ø

Amount

GTIN (EAN-Code)

Văzute 12 din 12 variantă(e)

Advantages

Quick installation
Watertight seal
Higher tolerance
Easily extendable
Wider base for further connections
No further collars or wraps required
Reduce working at heights
Cost saving
Reduced foot plate
Eco-friendly extension tube
Closer proximity positioning
Free of asbestos, solvents and any hazardous ingredients.

Applications

Sealing and firestopping PVC and HDPE pipes up to 6˝ (150 mm)
Forms holes up to 8˝ (200mm) thick concrete floors. In combination with extension pieces up to additional 4" (100mm) possible.
FCID Plus creates recesses in slabs for lower positioning of soil
Manifold units in wet room applications

Building materials

Reinforced cast concrete slabs
Some prefabricated slab systems (subject to design)

Puteți găsi informații detaliate despre materialele de construcție în documentul de înregistrare

Functionality

FCID Plus is a pass through system, which is constructed from a highly resilient polypropylene material and contains a powerful intumescent graphite band.
The FCID Plus is rugged enough to withstand the force and load of a concrete pour, yet lightweight enough to permit easy placement and handling.

Mounting Strip 1 Picture

1 / 5

1
2
3
4
5

Fits pipe-Ø ( [mm] )	FCID 100 CI
Amount	1 pcs.
GTIN (EAN-Code)	5012184003673

Fits pipe-Ø ( [mm] )	FCID 150 CI
Amount	1 pcs.
GTIN (EAN-Code)	5012184003680

Fits pipe-Ø ( [mm] )	FCID 150-E/1,000
Amount	1 pcs.
GTIN (EAN-Code)	5012184003833

Fits pipe-Ø ( [mm] )	FCID 65 CI
Amount	1 pcs.
GTIN (EAN-Code)	5012184003666

Fits pipe-Ø ( [mm] )	FCID 100 CI
Amount	1 pcs.
GTIN (EAN-Code)	4048962146950

Cast-in Device FCID Plus

Variante de produs

Avantajele / Descrierea produsului

Aplicație și aprobare

Instrucțiuni de asamblare

Fits pipe-Ø ( [mm] )	Nom 3”/75 mm Pipe
Amount	1 pcs.
GTIN (EAN-Code)	5012184003581

Fits pipe-Ø ( [mm] )	Nom 6”/160 mm Pipe
Amount	1 pcs.
GTIN (EAN-Code)	5012184003598

Fits pipe-Ø ( [mm] )	Nom 4”/110 mm Pipe
Amount	1 pcs.
GTIN (EAN-Code)	5012184002355

Fits pipe-Ø ( [mm] )	FCID 100-E/1,000
Amount	1 pcs.
GTIN (EAN-Code)	5012184003635
