Art.-No. 93175

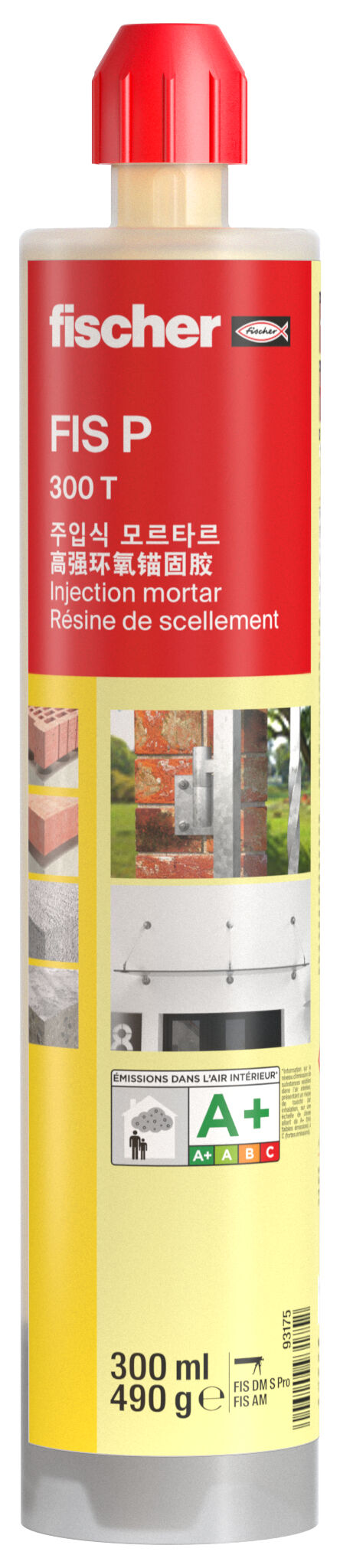

fischer Injection mortar FIS P 300 T

Top Features
  • Polyester resin without approval for use in masonry.
  • Can be used with anchor rods FIS A, internal threaded anchor FIS E and fischer anchor sleeves.

The advantages / Product description

The reliable injection mortar for fixings in masonry.
Advantages
  • The FIS P is the economical solution for anchorings in masonry that do not require approvals.
  • The FIS P 300 T can be used with stable, standard silicone injection dispensers. No special equipment is required. This helps to reduce procurement costs.
The fischer Injection mortar FIS VW is the universal all-rounder for maximum loads, even at temperatures of -15 °C.The styrene-free vinyl ester hybrid mortar is the first system in the world to be approved for fixings in perforated brick, solid brick, concrete, and aerated concrete. The injection mortar system also scores with approved system components such as threaded rods FIS A, Internal thread anchors and injection anchor sleeves for fixings in concrete, aerated concrete and masonry indoors and outside. The fischer Injection mortar FIS VW is also used, however, with the approved system components for the fischer weather facing wall tie FWS and the stand-off installation TherMax.

Application and approval

Applications
  • Gratings
  • Gates
  • Handrails
  • Consoles
  • Pipelines
Building materials
  • Vertically perforated brick
  • Hollow block
  • Perforated sand-lime brick
  • Solid sand-lime brick
  • Aerated concrete
  • Solid brick made from lightweight concrete
  • Solid brick
You can find detailed information on building materials in the registration document.

Assembly instruction

Functionality
  • The FIS P is a 2-component injection mortar based on polyester resin.
  • Resin and hardener are stored in two separate chambers and are not mixed and activated until extrusion through the static mixer.
  • The mortar is extruded bubble free from the drill hole base.
  • The mortar bonds the entire surface of the anchor with the drill hole wall and seals the drill hole.
  • Partially used cartridges can be reused by changing the static mixer.
Mounting Strip 1 Picture
1 / 7
Mounting Strip 2 Picture
1 / 5
Mounting Strip 3 Picture
1 / 7

Technical data

Language on label EN, FR, KO, ZH
Scale unit 150
Contents 1 x Cartridge 300 ml
2 x Static mixer FIS MR Plus
Packaging Cartridge
Amount 1 pcs.
GTIN (EAN-Code) 4006209931752

Documents for download

  • Safety data sheets
  • Technical documents
Safety data sheet for 93175 FIS P 300 T
